BEA11

Toyota RAV4-VANGUARD · 1997 · 2,471 parts · 125 categories

← Back to categories

2,471 items

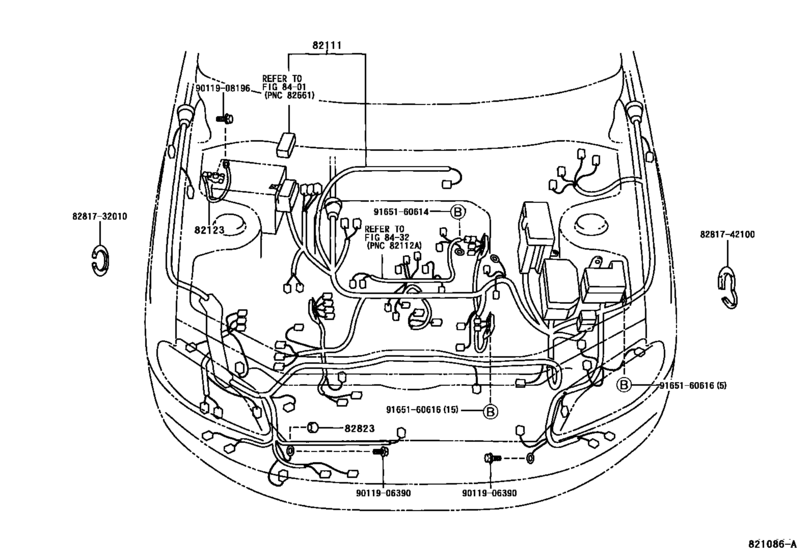

Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- )) 13

#	OEM	Part name
82111	82111-4A060	Wire, Engine Room Main
82111	82111-4A061	Wire, Engine Room Main
82111	82111-42310	Wire, Engine Room Main
82123	82123-42031	Wire, Engine, No.3
82123	82123-42050	Wire, Engine, No.3
82823	82823-50040	Cap, Terminal, No.2
8281732010	82817-32010	Protector, Wiring Harness, No.1
8281742100	82817-42100	Protector, Wiring Harness, No.2
9011906390	90119-06390	BOLT WWASHER
9011908196	90119-08196	New Genuine Part
9011908196	90119-08103	New Genuine Part
9165160614	91651-60614	Bolt
9165160616	91651-60616	BOLT

OEM	Part name	Category
82111-42310	Wire, Engine Room Main	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
82111-4A060	Wire, Engine Room Main	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
82111-4A061	Wire, Engine Room Main	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
82123-42031	Wire, Engine, No.3	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
82123-42050	Wire, Engine, No.3	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
82817-32010	Protector, Wiring Harness, No.1	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
82817-42100	Protector, Wiring Harness, No.2	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
82823-50040	Cap, Terminal, No.2	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
90119-06390	BOLT WWASHER	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
90119-08103	New Genuine Part	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
90119-08196	New Genuine Part	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
91651-60614	Bolt	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))
91651-60616	BOLT	Wiring & Clamp ([09.1997 - ] MOTOR ROOM (9709- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 125
Collected: 2026-08-02
