Search › Model › BEA11
BEA11

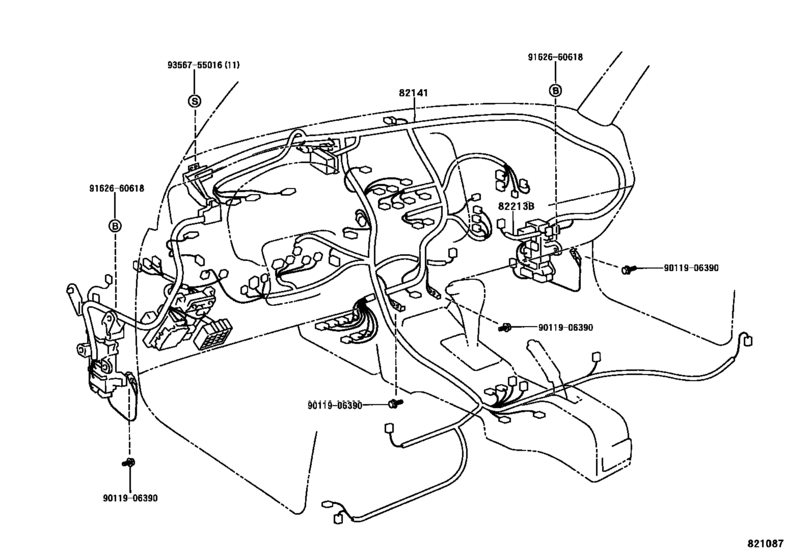

Wiring & Clamp ([09.1997 - ] INSTRUMENT PANEL (9709- )) 9
| # | OEM | Part name |
|---|---|---|
| 82141 | 82145-42020 | Wire, Instrument Panel |
| 82141 | 82145-42021 | Wire, Instrument Panel |
| 82141 | 82141-4A620 | Wire, Instrument Panel |
| 82213 | 82213-42040 | Wire, Heater |
| 9011906390 | 90119-06390 | BOLT WWASHER |
| 9162660618 | 91626-60618 | New Genuine Part |
| 9162660618 | 91621-J0614 | BOLT W-WASHER |
| 9356755016 | 93567-55016 | Screw |
| 9356755016 | 93568-55016 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 82141-4A620 | Wire, Instrument Panel | Wiring & Clamp ([09.1997 - ] INSTRUMENT PANEL (9709- )) |
| 82145-42020 | Wire, Instrument Panel | Wiring & Clamp ([09.1997 - ] INSTRUMENT PANEL (9709- )) |
| 82145-42021 | Wire, Instrument Panel | Wiring & Clamp ([09.1997 - ] INSTRUMENT PANEL (9709- )) |
| 82213-42040 | Wire, Heater | Wiring & Clamp ([09.1997 - ] INSTRUMENT PANEL (9709- )) |
| 90119-06390 | BOLT WWASHER | Wiring & Clamp ([09.1997 - ] INSTRUMENT PANEL (9709- )) |
| 91621-J0614 | BOLT W-WASHER | Wiring & Clamp ([09.1997 - ] INSTRUMENT PANEL (9709- )) |
| 91626-60618 | New Genuine Part | Wiring & Clamp ([09.1997 - ] INSTRUMENT PANEL (9709- )) |
| 93567-55016 | Screw | Wiring & Clamp ([09.1997 - ] INSTRUMENT PANEL (9709- )) |
| 93568-55016 | Screw | Wiring & Clamp ([09.1997 - ] INSTRUMENT PANEL (9709- )) |
