BEA11

Toyota RAV4-VANGUARD · 1997 · 2,471 parts · 125 categories
BEA11 ×

← Back to categories

2,471 items

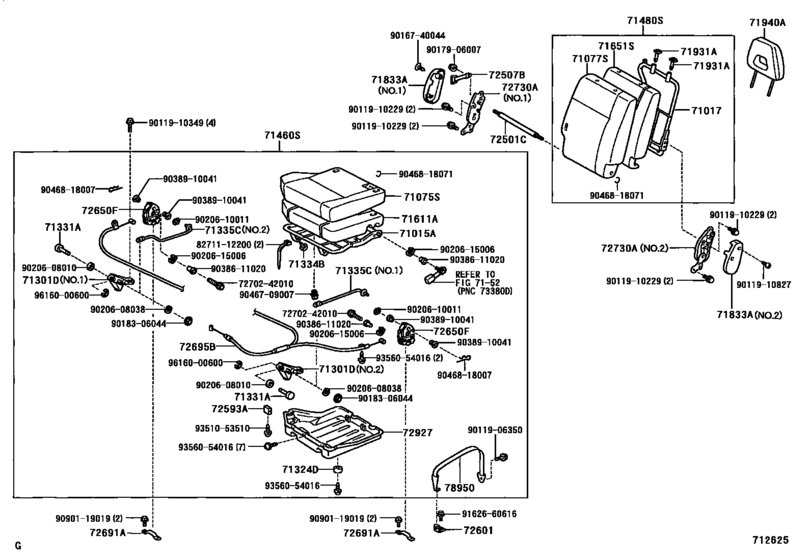

Seat & Seat Track ([09.2002 - ] REAR SEAT-RH (0209- )) 82
#OEMPart name
71015 71015-42030 Frame Sub-Assy, Rear Seat Cushion, Rh
71015 71015-42060 Frame Sub-Assy, Rear Seat Cushion, Rh
71015 71015-42140 Frame Sub-Assy, Rear Seat Cushion, Rh
71017 71017-42031 Frame Sub-Assy, Rear Seat Back, Rh
71017 71017-42050 Frame Sub-Assy, Rear Seat Back, Rh
71075 71075-42120-B0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-42131-B0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-42290 Cover, Rear Seat Cushion, Rh (For Separate Type)
71077 71077-42120-B0 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-42290-B0 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-42130-B0 Cover, Rear Seat Back, Rh (For Separate Type)
71301 71301-42020 Hinge Sub-Assy, Rear Seat, Rh
71301 71301-42030 Hinge Sub-Assy, Rear Seat, Rh
71301 71301-42040 Hinge Sub-Assy, Rear Seat, Rh
71301 71301-42050 Hinge Sub-Assy, Rear Seat, Rh
71324 71324-42020 Cushion, Rear Seat, Rh
71331 71331-42010 Pin, Rear Seat Hinge
71334 71334-42010 Stopper, Rear Seat Leg, Rh
71335 71335-42021 Stay, Rear Seat Cushion Link, Rh
71335 71335-42030 Stay, Rear Seat Cushion Link, Rh
71460 71460-42030-B0 Cushion Assy, Rear Seat, Rh(For Separate Type)
71460 71460-42082-B3 Cushion Assy, Rear Seat, Rh(For Separate Type)
71460 71460-42241-B0 Cushion Assy, Rear Seat, Rh(For Separate Type)
71460 71460-42320-B0 Cushion Assy, Rear Seat, Rh(For Separate Type)
71460 71460-42500 Cushion Assy, Rear Seat, Rh(For Separate Type)
71480 71480-42150-B0 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-42170-B0 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-42210-B0 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-42200-B0 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-42350-B0 Back Assy, Rear Seat, Rh (For Separate Type)
71611 71611-42020 Pad, Rear Seat Cushion, Rh
71611 71611-42060 Pad, Rear Seat Cushion, Rh
71651 71651-42020 Pad, Rear Seat Back, Rh(For Separate Type)
71833 71833-42020-B1 Cover, Rear Seat Reclining, No.1 Rh
71833 71833-42020-B2 Cover, Rear Seat Reclining, No.1 Rh
71833 71834-42020-B1 Cover, Rear Seat Reclining, No.1 Rh
71833 71834-42020-B2 Cover, Rear Seat Reclining, No.1 Lh
71931 71930-44010-B1 Support, Front Seat Headrest
71931 71930-44010-C0 Support, Front Seat Headrest
71931 71931-12040-B0 Support, Front Seat Headrest
71940 71910-42040-B1 Headrest Assy, Front Seat
72501 72345-42010 Pipe Sub-Assy, Reclining Connecting
72507 72507-42030-B1 Handle Sub-Assy, Reclining Release, Rh
72593 72593-60010-B1 Knob, Remote Control Lever, Rh
72593 72593-60010-C0 Knob, Remote Control Lever, Rh (BLACK)
72601 72601-42020 Striker Sub-Assy, Rear Seat Lock
72650 72650-42021 Lock Assy, Rear Seat, Rh
72691 72691-42020 Striker, Rear Seat Cushion Lock, No.1
72695 72695-42010 Cable, Rear Seat Lock Control, Rh
72695 72695-42030 Cable, Rear Seat Lock Control, Rh
72730 72730-42040 Adjuster Assy, Rear Seat Reclining, Rh
72730 72730-42050 Adjuster Assy, Rear Seat Reclining, Rh
72927 72927-42020-B1 Cover, Rear Seat Cushion Under, Rh
72927 72927-42031-B0 Cover, Rear Seat Cushion Under, Rh
72927 72927-42060-B0 Cover, Rear Seat Cushion Under, Rh
78950 78950-42010-B1 Band Assy, Fold Seat Stopper, No.1
7270242010 72702-42010 Bracket Sub-assy, Rear Seat Back Striker
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9011906350 90119-06350 BOLT
9011910229 90119-10229 BOLT
9011910349 90119-10349 BOLT
9011910349 91651-G1020 BOLT
9011910827 90119-10827 New Genuine Part
9016740044 90167-40044 BOLT
9017906007 90179-06007 Nut
9018306044 90183-06044 NUT SPRING
9020608010 90206-08010 New Genuine Part
9020608038 90206-08038 New Genuine Part
9020610011 90206-10011 New Genuine Part
9020615006 90206-15006 New Genuine Part
9038611020 90386-11020 New Genuine Part
9038910041 90389-10041 BUSH
9046709007 90467-09007 New Genuine Part
9046818007 90468-18007 New Genuine Part
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9090119019 90901-19019 Bolt
9162660616 91626-60616 New Genuine Part
9162660616 91621-J0612 BOLT W-WASHER
9351053510 93510-53510 New Genuine Part
9356054016 93560-54016 SCREW
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
