BEA11

Toyota RAV4-VANGUARD · 1997 · 2,471 parts · 125 categories
BEA11 ×

← Back to categories

2,471 items

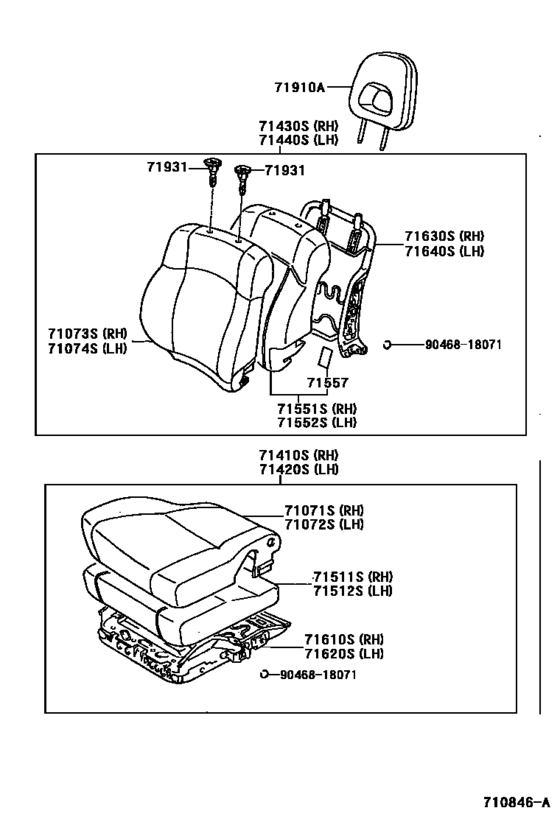

Seat & Seat Track ([09.1997 - ] FRONT SEAT (9709- )) 61
#OEMPart name
71071 71071-42190-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-42300 Cover, Front Seat Cushion, Rh(For Separate Type)
71073 71073-42230-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-42300 Cover, Front Seat Back, Rh(For Separate Type)
71147 71147-35010 Silencer, Seat Spring
71410 71410-42090-B0 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-42200 Cushion Assy, Front Seat, Rh(For Separate Type)
71430 71430-42100-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-42310 Back Assy, Front Seat, Rh(For Separate Type)
71511 71511-42020 Pad, Front Seat Cushion, (For Separate Type)
71551 71551-42020 Pad, Front Seat Back, Rh(For Separate Type)
71557 71557-42030 Cloth, Front Seat Back Under
71610 71610-42020 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630 71630-42020 Spring Assy, Front Seat Back, Rh(For Separate Type)
71811 71811-42030-B1 Shield, Front Seat Cushion, Rh
71812 71812-42050-B0 Shield, Front Seat Cushion, Lh
71861 71861-42020-B1 Shield, Front Seat Cushion, Inner Rh
71862 71862-42020-B1 Shield, Front Seat Cushion, Inner Lh
71867 71867-42020-B1 Shield, Front Seat Cushion, Inner No.1 Rh
71868 71868-42020-B1 Shield, Front Seat Cushion, Inner No.1 Lh
71875 71875-42030-B1 Cover, Reclining Adjuster Inside, Rh
71876 71876-42030-B1 Cover, Reclining Adjuster Inside, Lh
71910 71910-42040-B1 Headrest Assy, Front Seat
71931 71930-44010-B1 Support, Front Seat Headrest
71931 71930-44010-C0 Support, Front Seat Headrest
71931 71931-12040-B0 Support, Front Seat Headrest
72011 72011-42110 Adjuster Sub-Assy, Front Seat, Outer Rh
72011 72011-42111 Adjuster Sub-Assy, Front Seat, Outer Rh
72012 72012-42080 Adjuster Sub-Assy, Front Seat, Outer Lh
72012 72012-42081 Adjuster Sub-Assy, Front Seat, Outer Lh
72021 72021-42060 Adjuster Sub-Assy, Front Seat, Inner Rh
72021 72021-42061 Adjuster Sub-Assy, Front Seat, Inner Rh
72022 72022-42050 Adjuster Sub-Assy, Front Seat, Inner Lh
72022 72022-42051 Adjuster Sub-Assy, Front Seat, Inner Lh
72123 72127-12010-P0 Cover, Seat Track Bracket, Inner Front
72123 72127-12010-C0 Cover, Seat Track Bracket, Inner Front
72125 72125-10010 Cover, Seat Track, Upper Rear
72129 72129-20040 Protector, Seat Track Lower Rail, No.1
72137 72137-42030-B1 Cover, Seat Track, Rh
72157 72157-10060-B1 Cover, Seat Track Bracket, Inner Rh
72158 72158-10030-B1 Cover, Seat Track Bracket, Inner Lh
72158 72158-10030-C0 Cover, Seat Track Bracket, Inner Lh
72201 72201-42010 Handle Sub-Assy, Seat Track Rh
72501 72501-42030 Pipe Sub-Assy, Reclining Connecting, Rh
72525 72525-10041-P0 Handle, Reclining Adjuster Release, Rh
72525 72525-10041-22 Handle, Reclining Adjuster Release, Rh
72526 72526-10041-P0 Handle, Reclining Adjuster Release, Lh
72526 72526-10041-22 Handle, Reclining Adjuster Release, Lh
91511 91511-B0816 BOLT
91511 90080-10159 New Genuine Part
91512 91512-G1025 BOLTFLANGE
8271112120 82711-12120 Clamp(Rear Seat)
9011910349 90119-10349 BOLT
9011910349 91651-G1020 BOLT
9016740044 90167-40044 BOLT
9017910190 90179-10190 New Genuine Part
9017910190 90178-10004 New Genuine Part
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9326954006 93269-54006 SCREW
9356854516 93568-54516 SCREW TAPPING
