Search › Model › BEA11

BEA11

Toyota RAV4-VANGUARD · 1997 · 2,471 parts · 125 categories

2,471 items

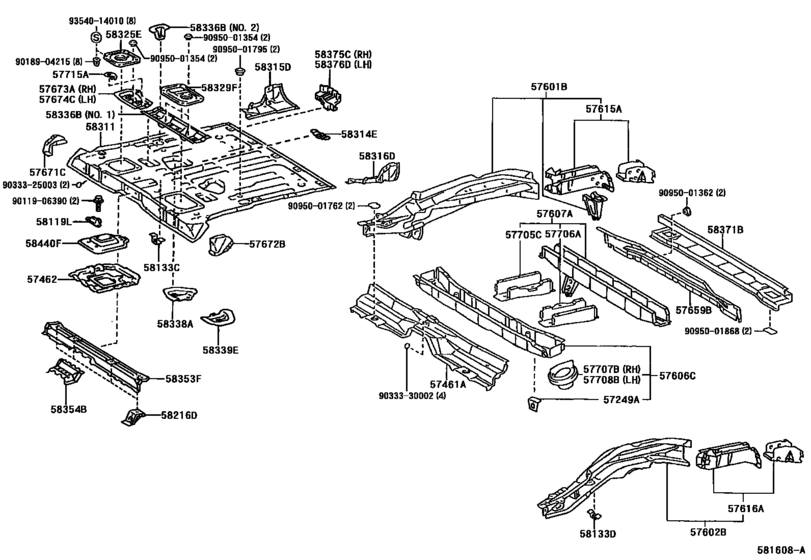

Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- )) 54

#	OEM	Part name
57249	57249-10040	Bracket, Front Side Member, Rh
57461	57461-42030	Member, Center Floor Cross
57462	57462-42010	Member, Center Floor Cross, No.2
57601	57601-42080	Member Sub-Assy, Rear Floor Side, Front Rh
57602	57602-42080	Member Sub-Assy, Rear Floor Side, Front Lh
57606	57606-42060	Member Sub-Assy, Rear Floor Cross, No.2
57607	57607-42040	Member Sub-Assy, Rear Floor Cross, No.3
57615	57615-42902	Member, Rear Floor Side, Rear Rh
57616	57616-42902	Member, Rear Floor Side, Rear Lh
57659	57659-42020	Member, Rear Floor Cross, Rear Inner
57671	57671-42021	Brace, Rear Floor No.1 Crossmember, Rh
57672	57672-42021	Brace, Rear Floor No.1 Crossmember, Lh
57673	57673-42020	Brace, Rear Floor No.2 Crossmember, Rh
57673	57673-42030	Brace, Rear Floor No.2 Crossmember, Rh
57674	57674-42020	Brace, Rear Floor No.2 Crossmember, Lh
57674	57674-42030	Brace, Rear Floor No.2 Crossmember, Lh
57705	57705-42030	Bracket, Rear Suspension Member Mounting, Rear Rh
57706	57706-42030	Bracket, Rear Suspension Member Mounting, Rear Lh
57707	57707-42010	Bracket, Sub-Assy, Rear Spring, Front Rh
57708	57708-42010	Bracket, Sub-Assy, Rear Spring, Front Lh
57715	57715-42010	Plate, Rear Suspension Member Mounting, Front Rh
58119	58119-42020	Plate, Rear Floor Side
58133	58133-22030	Bracket, Front Floor Heat Insulator, No.3
58216	58215-42021	Bracket, Rear Seat Mounting, Rh
58216	61505-42010	Bracket, Rear Seat Mounting, Lh
58311	58311-42060	Pan, Rear Floor
58311	58311-42070	Pan, Rear Floor
58311	58311-42100	Pan, Rear Floor
58314	58317-42020	Extension, Rear Floor Side Panel, Lh - REAR SEAT, NO.2
58315	58315-42030	Extension, Rear Floor Pan, Rh
58316	58316-42030	Extension, Rear Floor Pan, Lh
58325	58325-42020	Cover, Rear Floor Service Hole
58329	58329-42020	Cover, Rear Floor Service Hole, No.2
58336	58336-42020	Reinforcement, Rear Floor Pan
58336	58336-42030	Reinforcement, Rear Floor Pan
58336	58336-42050	Reinforcement, Rear Floor Pan
58338	58338-42010	Reinforcement, Rear Floor Pan, No.2
58339	58339-42010	Reinforcement, Rear Floor Pan, No.2 Lh
58353	58353-42010	Reinforcement, Rear Floor Panel, No.3
58354	58354-42010	Reinforcement, Rear Floor Panel, No.4
58371	58371-42020	Panel, Body Lower Back, Outer
58375	58375-42010	Reinforcement, Body Lower Back, Rh
58376	58376-42020	Reinforcement, Body Lower Back, Lh
58440	58440-42010	Cover Assy, Battery Service Hole
9011906390	90119-06390	BOLT WWASHER
9018904215	90189-04215	New Genuine Part
9033325003	90333-25003	Plug, Hole(For Hood)
9033330002	90333-30002	Cover, Front Floor Hole
9095001354	90950-01354	Cushion(For Luggage Compartment Door Panel)
9095001362	90950-01362	New Genuine Part
9095001762	90950-01762	New Genuine Part
9095001795	90950-01795	New Genuine Part
9095001868	90950-01868	PLUG HOLE
9354014010	93540-14010	Clip, Headlining Retainer

OEM	Part name	Category
57249-10040	Bracket, Front Side Member, Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57461-42030	Member, Center Floor Cross	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57462-42010	Member, Center Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57601-42080	Member Sub-Assy, Rear Floor Side, Front Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57602-42080	Member Sub-Assy, Rear Floor Side, Front Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57606-42060	Member Sub-Assy, Rear Floor Cross, No.2	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57607-42040	Member Sub-Assy, Rear Floor Cross, No.3	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57615-42902	Member, Rear Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57616-42902	Member, Rear Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57659-42020	Member, Rear Floor Cross, Rear Inner	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57671-42021	Brace, Rear Floor No.1 Crossmember, Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57672-42021	Brace, Rear Floor No.1 Crossmember, Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57673-42020	Brace, Rear Floor No.2 Crossmember, Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57673-42030	Brace, Rear Floor No.2 Crossmember, Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57674-42020	Brace, Rear Floor No.2 Crossmember, Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57674-42030	Brace, Rear Floor No.2 Crossmember, Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57705-42030	Bracket, Rear Suspension Member Mounting, Rear Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57706-42030	Bracket, Rear Suspension Member Mounting, Rear Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57707-42010	Bracket, Sub-Assy, Rear Spring, Front Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57708-42010	Bracket, Sub-Assy, Rear Spring, Front Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
57715-42010	Plate, Rear Suspension Member Mounting, Front Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58119-42020	Plate, Rear Floor Side	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58133-22030	Bracket, Front Floor Heat Insulator, No.3	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58215-42021	Bracket, Rear Seat Mounting, Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58311-42060	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58311-42070	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58311-42100	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58315-42030	Extension, Rear Floor Pan, Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58316-42030	Extension, Rear Floor Pan, Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58317-42020	Extension, Rear Floor Side Panel, Lh - REAR SEAT, NO.2	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58325-42020	Cover, Rear Floor Service Hole	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58329-42020	Cover, Rear Floor Service Hole, No.2	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58336-42020	Reinforcement, Rear Floor Pan	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58336-42030	Reinforcement, Rear Floor Pan	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58336-42050	Reinforcement, Rear Floor Pan	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58338-42010	Reinforcement, Rear Floor Pan, No.2	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58339-42010	Reinforcement, Rear Floor Pan, No.2 Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58353-42010	Reinforcement, Rear Floor Panel, No.3	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58354-42010	Reinforcement, Rear Floor Panel, No.4	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58371-42020	Panel, Body Lower Back, Outer	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58375-42010	Reinforcement, Body Lower Back, Rh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58376-42020	Reinforcement, Body Lower Back, Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
58440-42010	Cover Assy, Battery Service Hole	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
61505-42010	Bracket, Rear Seat Mounting, Lh	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
90119-06390	BOLT WWASHER	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
90189-04215	New Genuine Part	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
90333-25003	Plug, Hole(For Hood)	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
90333-30002	Cover, Front Floor Hole	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
90950-01354	Cushion(For Luggage Compartment Door Panel)	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
90950-01362	New Genuine Part	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
90950-01762	New Genuine Part	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
90950-01795	New Genuine Part	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
90950-01868	PLUG HOLE	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))
93540-14010	Clip, Headlining Retainer	Rear Floor Panel & Rear Floor Member ([09.2002 - ] (0209- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 125
Collected: 2026-08-02
