Search › Model › BEA11

BEA11

Toyota RAV4-VANGUARD · 1997 · 2,471 parts · 125 categories

2,471 items

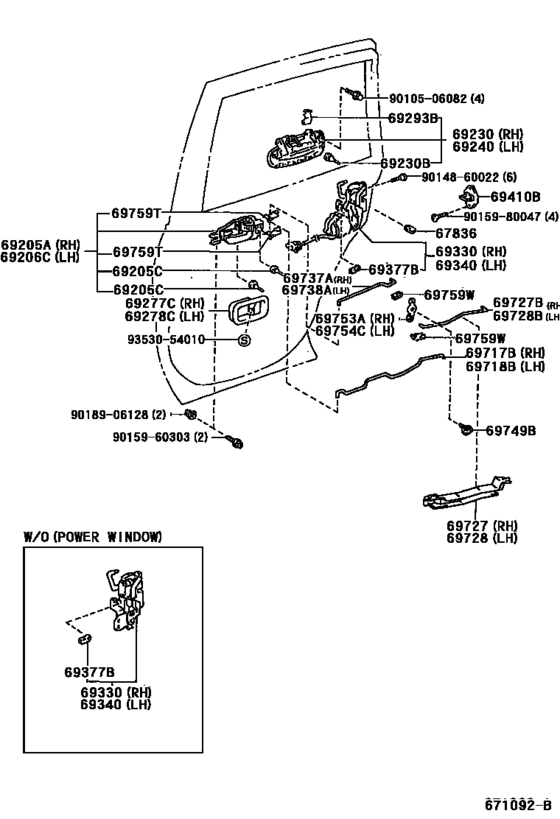

Rear Door Lock & Handle ([09.1997 - ] (9709- )) 68

#	OEM	Part name
67836	67836-42010	Cover, Rear Door Lock Child Protection, Rh
69205	69205-42010-B1	Handle Sub-Assy, Door Inside, Rh
69205	90541-04018	Cushion(For Front Door Inside Handle)
69205	90541-04020	Cushion(For Front Door Inside Handle)
69206	69206-42010-B1	Handle Sub-Assy, Door Inside, Lh
69230	69230-42040-A1	Handle Assy, Rear Door Outside, Rh
69230	69230-42040-A3	Handle Assy, Rear Door Outside, Rh
69230	69230-42040-B0	Handle Assy, Rear Door Outside, Rh
69230	69230-42040-B2	Handle Assy, Rear Door Outside, Rh
69230	69230-42040-D4	Handle Assy, Rear Door Outside, Rh
69230	69230-42040-G0	Handle Assy, Rear Door Outside, Rh
69230	69230-42040-J1	Handle Assy, Rear Door Outside, Rh
69230	90541-04014	Cushion, Console Box
69230	69230-12150-A3	Handle Assy, Rear Door Outside, Rh
69230	69230-12150-A0	Handle Assy, Rear Door Outside, Rh
69230	69230-12150-B5	Handle Assy, Rear Door Outside, Rh
69230	69230-12150-D7	Handle Assy, Rear Door Outside, Rh
69230	69230-12150-D2	Handle Assy, Rear Door Outside, Rh
69230	69230-12150-Q4	Handle Assy, Rear Door Outside, Rh
69230	69230-12150-R2	Handle Assy, Rear Door Outside, Rh
69240	69240-42040-A1	Handle Assy, Rear Door Outside, Lh
69240	69240-42040-A3	Handle Assy, Rear Door Outside, Lh
69240	69240-42040-B0	Handle Assy, Rear Door Outside, Lh
69240	69240-42040-B2	Handle Assy, Rear Door Outside, Lh
69240	69240-42040-D4	Handle Assy, Rear Door Outside, Lh
69240	69240-42040-G0	Handle Assy, Rear Door Outside, Lh
69240	69240-42040-J1	Handle Assy, Rear Door Outside, Lh
69240	69240-12150-A3	Handle Assy, Rear Door Outside, Lh
69240	69240-12150-A0	Handle Assy, Rear Door Outside, Lh
69240	69240-12150-B5	Handle Assy, Rear Door Outside, Lh
69240	69240-12150-D7	Handle Assy, Rear Door Outside, Lh
69240	69240-12150-D2	Handle Assy, Rear Door Outside, Lh
69240	69240-12150-Q4	Handle Assy, Rear Door Outside, Lh
69240	69240-12150-R2	Handle Assy, Rear Door Outside, Lh
69277	69277-22070-B1	Bezel, Front Door Inside Handle, Rh
69277	69277-22070-B0	Bezel, Front Door Inside Handle, Rh
69278	69278-22030-B1	Bezel, Front Door Inside Handle, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69330	69050-42011	Lock Assy, Rear Door, Rh
69330	69330-42011	Lock Assy, Rear Door, Rh
69340	69060-42011	Lock Assy, Rear Door, Lh
69340	69340-42011	Lock Assy, Rear Door, Lh
69377	69759-20040	Snap, Auxiliary Catch Release Lever Control Link
69377	69759-20050	Snap(For Rear Door Lock)
69410	69410-87001	Plate Assy, Front Door Lock Striker
69410	69410-AA020	Plate Assy, Front Door Lock Striker
69717	69713-42010	Link, Rear Door Lock Remote Control, Rh
69718	69714-42010	Link, Rear Door Lock Remote Control, Lh
69727	69727-42010	Protector, Rear Door Inside Locking Link, Rh
69727	69727-42020	Link, Rear Door Inside Locking, No.2 Rh
69728	69728-42010	Protector, Rear Door Inside Locking Link, Lh
69728	69728-42020	Link, Rear Door Inside Locking, No.2 Lh
69737	69737-42010	Link, Rear Door Inside Locking , Rh
69738	69738-42010	Link, Rear Door Inside Locking , Lh
69749	69749-32030	Clamp, Front Door Lock Link
69753	69753-20060	Bellcrank, Door Lock Control
69759	69759-14050	Snap(For Rear Door Inside Handle)
69759	69759-24070	Snap(For Rear Door Inside Handle)
69759	69759-24030	Snap, Door Inside Handle Link
9010506082	90105-06082	BOLT
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9015960303	90159-60303	SCREW
9015980047	90159-80047	New Genuine Part
9018906128	90189-06128	GROMMET SCREW
9353054010	93530-54010	SCREW
9353054010	90084-16012	SCREW

OEM	Part name	Category
67836-42010	Cover, Rear Door Lock Child Protection, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69050-42011	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69060-42011	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69205-42010-B1	Handle Sub-Assy, Door Inside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69206-42010-B1	Handle Sub-Assy, Door Inside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-12150-A0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-12150-A3	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-12150-B5	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-12150-D2	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-12150-D7	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-12150-Q4	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-12150-R2	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-42040-A1	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-42040-A3	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-42040-B0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-42040-B2	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-42040-D4	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-42040-G0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69230-42040-J1	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-12150-A0	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-12150-A3	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-12150-B5	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-12150-D2	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-12150-D7	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-12150-Q4	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-12150-R2	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-42040-A1	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-42040-A3	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-42040-B0	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-42040-B2	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-42040-D4	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-42040-G0	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69240-42040-J1	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69277-22070-B0	Bezel, Front Door Inside Handle, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69277-22070-B1	Bezel, Front Door Inside Handle, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69278-22030-B1	Bezel, Front Door Inside Handle, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69293-12030	Snap, Front Door Outside Handle	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69293-12040	Snap, Front Door Outside Handle	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69330-42011	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69340-42011	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69410-87001	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69410-AA020	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69713-42010	Link, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69714-42010	Link, Rear Door Lock Remote Control, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69727-42010	Protector, Rear Door Inside Locking Link, Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69727-42020	Link, Rear Door Inside Locking, No.2 Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69728-42010	Protector, Rear Door Inside Locking Link, Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69728-42020	Link, Rear Door Inside Locking, No.2 Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69737-42010	Link, Rear Door Inside Locking , Rh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69738-42010	Link, Rear Door Inside Locking , Lh	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69749-32030	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69753-20060	Bellcrank, Door Lock Control	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69759-14050	Snap(For Rear Door Inside Handle)	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69759-20040	Snap, Auxiliary Catch Release Lever Control Link	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69759-20050	Snap(For Rear Door Lock)	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69759-24030	Snap, Door Inside Handle Link	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
69759-24070	Snap(For Rear Door Inside Handle)	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
90084-16012	SCREW	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
90105-06082	BOLT	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
90148-60022	BOLT	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
90159-60303	SCREW	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
90159-80047	New Genuine Part	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
90189-06128	GROMMET SCREW	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
90541-04014	Cushion, Console Box	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
90541-04018	Cushion(For Front Door Inside Handle)	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
90541-04020	Cushion(For Front Door Inside Handle)	Rear Door Lock & Handle ([09.1997 - ] (9709- ))
93530-54010	SCREW	Rear Door Lock & Handle ([09.1997 - ] (9709- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 125
Collected: 2026-08-02
