Search › Model › BEA11

BEA11

Toyota RAV4-VANGUARD · 1997 · 2,471 parts · 125 categories

← Back to categories

2,471 items

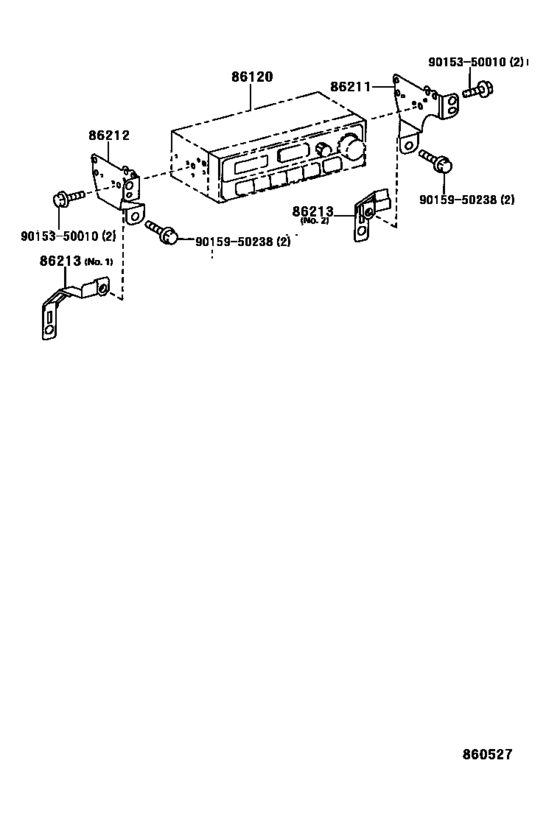

Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- )) 10

#	OEM	Part name
86120	86120-02150	Receiver Assy, Radio
86120	86120-04090	Receiver Assy, Radio
86211	86211-42010	Bracket, Radio, No.1
86212	86212-42010	Bracket, Radio, No.2
86213	86213-42030	Bracket, Radio, No.3
86213	86213-42040	Bracket, Radio, No.3
9001125101	90011-25101	New Genuine Part
9001125102	90011-25102	New Genuine Part
9015350010	90153-50010	BOLT
9015950238	90159-50238	SCREW WWASHER

OEM	Part name	Category
86120-02150	Receiver Assy, Radio	Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- ))
86120-04090	Receiver Assy, Radio	Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- ))
86211-42010	Bracket, Radio, No.1	Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- ))
86212-42010	Bracket, Radio, No.2	Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- ))
86213-42030	Bracket, Radio, No.3	Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- ))
86213-42040	Bracket, Radio, No.3	Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- ))
90011-25101	New Genuine Part	Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- ))
90011-25102	New Genuine Part	Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- ))
90153-50010	BOLT	Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- ))
90159-50238	SCREW WWASHER	Radio Receiver & Amplifier & Condenser ([09.1997 - ] (9709- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 125
Collected: 2026-08-02
