Search › Model › BEA11

BEA11

Toyota RAV4-VANGUARD · 1997 · 2,471 parts · 125 categories

2,471 items

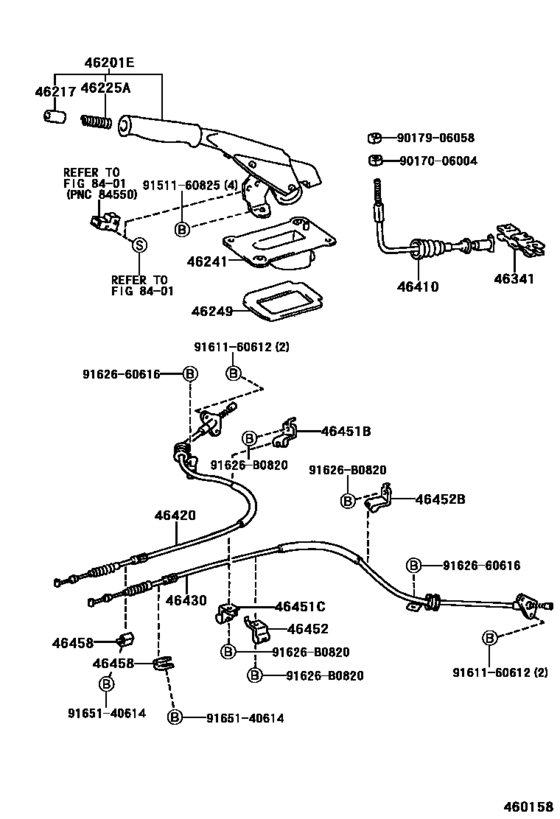

Parking Brake & Cable ([09.1997 - ] (9709- )) 26

#	OEM	Part name
46201	46201-42030-C0	Lever Sub-Assy, Parking Brake
46217	46217-16030-C0	Knob, Parking Brake Release Rod
46225	90501-10069	Spring, Compression(For Parking Brake Pawl Rod)
46241	46241-20050	Boot, Parking Brake Lever
46249	46249-20030	Shield, Parking Brake Hole
46341	46341-24010	Equalizer, Parking Brake
46410	46410-42030	Cable Assy, Parking Brake, No.1
46420	46420-42060	Cable Assy, Parking Brake, No.2
46430	46430-42060	Cable Assy, Parking Brake, No.3
46451	46451-42050	Bracket, Parking Brake Cable Support
46451	46451-42040	Bracket, Parking Brake Cable Support, No.1
46452	46452-42040	Bracket, Parking Brake Cable Support, No.2
46452	46452-42050	Bracket, Cable Support, No.2
46458	46458-28010	Retainer, Cable
91626	91626-B0820	New Genuine Part
91626	91621-B0816	BOLT WWASHER
9017006004	90170-06004	Nut, Wire Adjusting, No.1
9017906058	90179-06058	Nut, Wire Adjusting, No.1
9017906058	90179-06299	Nut, Wire Adjusting, No.1
9151160825	91511-60825	Bolt (For Transfer Stiffener Plate)
9151160825	91511-B0825	Bolt (For Transfer Stiffener Plate)
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9162660616	91626-60616	New Genuine Part
9162660616	91621-J0612	BOLT W-WASHER
9165140614	91651-40614	Bolt

OEM	Part name	Category
46201-42030-C0	Lever Sub-Assy, Parking Brake	Parking Brake & Cable ([09.1997 - ] (9709- ))
46217-16030-C0	Knob, Parking Brake Release Rod	Parking Brake & Cable ([09.1997 - ] (9709- ))
46241-20050	Boot, Parking Brake Lever	Parking Brake & Cable ([09.1997 - ] (9709- ))
46249-20030	Shield, Parking Brake Hole	Parking Brake & Cable ([09.1997 - ] (9709- ))
46341-24010	Equalizer, Parking Brake	Parking Brake & Cable ([09.1997 - ] (9709- ))
46410-42030	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([09.1997 - ] (9709- ))
46420-42060	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([09.1997 - ] (9709- ))
46430-42060	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([09.1997 - ] (9709- ))
46451-42040	Bracket, Parking Brake Cable Support, No.1	Parking Brake & Cable ([09.1997 - ] (9709- ))
46451-42050	Bracket, Parking Brake Cable Support	Parking Brake & Cable ([09.1997 - ] (9709- ))
46452-42040	Bracket, Parking Brake Cable Support, No.2	Parking Brake & Cable ([09.1997 - ] (9709- ))
46452-42050	Bracket, Cable Support, No.2	Parking Brake & Cable ([09.1997 - ] (9709- ))
46458-28010	Retainer, Cable	Parking Brake & Cable ([09.1997 - ] (9709- ))
90170-06004	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([09.1997 - ] (9709- ))
90179-06058	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([09.1997 - ] (9709- ))
90179-06299	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([09.1997 - ] (9709- ))
90501-10069	Spring, Compression(For Parking Brake Pawl Rod)	Parking Brake & Cable ([09.1997 - ] (9709- ))
91511-60825	Bolt (For Transfer Stiffener Plate)	Parking Brake & Cable ([09.1997 - ] (9709- ))
91511-B0825	Bolt (For Transfer Stiffener Plate)	Parking Brake & Cable ([09.1997 - ] (9709- ))
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Parking Brake & Cable ([09.1997 - ] (9709- ))
91611-G0612	Bolt	Parking Brake & Cable ([09.1997 - ] (9709- ))
91621-B0816	BOLT WWASHER	Parking Brake & Cable ([09.1997 - ] (9709- ))
91621-J0612	BOLT W-WASHER	Parking Brake & Cable ([09.1997 - ] (9709- ))
91626-60616	New Genuine Part	Parking Brake & Cable ([09.1997 - ] (9709- ))
91626-B0820	New Genuine Part	Parking Brake & Cable ([09.1997 - ] (9709- ))
91651-40614	Bolt	Parking Brake & Cable ([09.1997 - ] (9709- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 125
Collected: 2026-08-02
