Search › Model › BEA11
BEA11

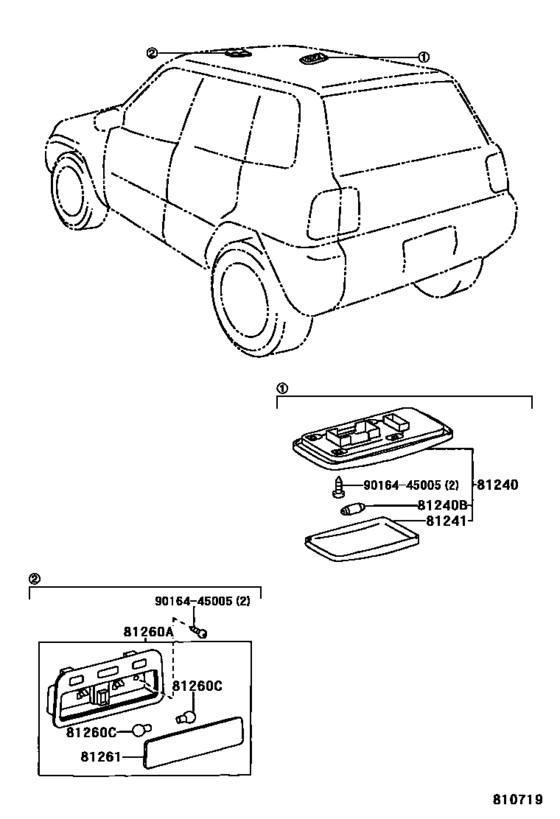

Interior Lamp ([09.1997 - ] (9709- )) 9
| # | OEM | Part name |
|---|---|---|
| 81240 | 81240-12060-B3 | Lamp Assy, Room, No.1 |
| 81240 | 90981-14011 | Bulb, Room Lamp, No.1 |
| 81240 | 81240-42010-B0 | Lamp Assy, Room, No.1 |
| 81241 | 81241-12020 | Lens, Room Lamp, No.1 |
| 81260 | 81260-14080-B3 | Lamp Assy, Map |
| 81260 | 81260-14080-B6 | Lamp Assy, Map |
| 81260 | 90981-12005 | Bulb, Room Lamp, No.1 |
| 81261 | 81261-14080 | Lens, Room Lamp, No.1 |
| 9016445005 | 90164-45005 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 81240-12060-B3 | Lamp Assy, Room, No.1 | Interior Lamp ([09.1997 - ] (9709- )) |
| 81240-42010-B0 | Lamp Assy, Room, No.1 | Interior Lamp ([09.1997 - ] (9709- )) |
| 81241-12020 | Lens, Room Lamp, No.1 | Interior Lamp ([09.1997 - ] (9709- )) |
| 81260-14080-B3 | Lamp Assy, Map | Interior Lamp ([09.1997 - ] (9709- )) |
| 81260-14080-B6 | Lamp Assy, Map | Interior Lamp ([09.1997 - ] (9709- )) |
| 81261-14080 | Lens, Room Lamp, No.1 | Interior Lamp ([09.1997 - ] (9709- )) |
| 90164-45005 | SCREW | Interior Lamp ([09.1997 - ] (9709- )) |
| 90981-12005 | Bulb, Room Lamp, No.1 | Interior Lamp ([09.1997 - ] (9709- )) |
| 90981-14011 | Bulb, Room Lamp, No.1 | Interior Lamp ([09.1997 - ] (9709- )) |
