Search › Model › BEA11

BEA11

Toyota RAV4-VANGUARD · 1997 · 2,471 parts · 125 categories
BEA11 ×

← Back to categories

2,471 items

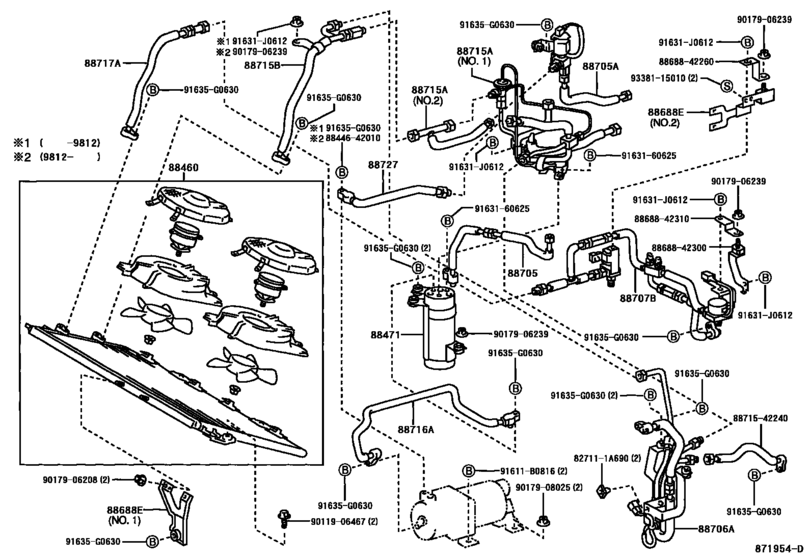

Heating & Air Conditioning - Cooler Piping ([09.1997 - ] (9709- )) 37
#OEMPart name
88460 88460-42040 Condenser Assy, Cooler
88471 88470-42070 Tank, Receiver Air Conditioner
88688 88688-42220 Bracket, Cooler Refrigerant Hose, No.1
88688 88688-42340 Bracket, Cooler Refrigerant Hose, No.1
88705 88705-42060 Pipe Sub-Assy, Discharge
88705 88705-42070 Tube Sub-Assy, Discharge
88706 88706-42111 Tube Sub-Assy, Liquid, A
88706 88706-42250 Tube Sub-Assy, Liquid, A
88706 88706-42110 Tube Sub-Assy, Liquid, A
88707 88707-42040 Tube Sub-Assy, Suction, B
88715 88707-42060 Pipe, Cooler Refrigerant Discharge, A
88715 88715-42070 Pipe, Cooler Refrigerant Discharge, A
88715 88715-42270 Pipe, Cooler Refrigerant Discharge, B
88715 88715-42290 Pipe, Cooler Refrigerant Discharge, B
88715 88715-42080 Pipe, Cooler Refrigerant Discharge, B
88715 88715-42081 Pipe, Cooler Refrigerant Discharge, B
88716 88716-42120 Pipe, Cooler Refrigerant Liquid, A
88717 88717-42150 Pipe, Cooler Refrigerant Suction, A
88717 88717-42140 Pipe, Cooler Refrigerant Suction, A
88727 88727-42040 Tube, Suction, No.2
91611 91611-B0816 Bolt
91631 91631-J0612 BRACKET
91635 91635-G0630 New Genuine Part
91635 90119-06775 BOLT WWASHER
827111 82711-1A690 Wire, Fuse To Fuse(for Combustion Heater)
8844642010 88446-42010 Bolt, Idle Pulley
8868842260 88688-42260 Bracket, Cooler Diaphragm
8868842300 88688-42300 Bracket, Cooler Diaphragm
8868842310 88688-42310 Bracket, Cooler Diaphragm
8871542240 88715-42240 New Genuine Part
9011906467 90119-06467 BOLT WWASHER
9017906208 90179-06208 NUT
9017906239 90179-06239 New Genuine Part
9017906239 90179-06314 NUT
9017908025 90179-08025 Nut, Cap(For Cylinder Head Cover)
9163160625 91631-60625 BOLT WWASHER
9338115010 93381-15010 SCREW
