Search › Model › BEA11

BEA11

Toyota RAV4-VANGUARD · 1997 · 2,471 parts · 125 categories

2,471 items

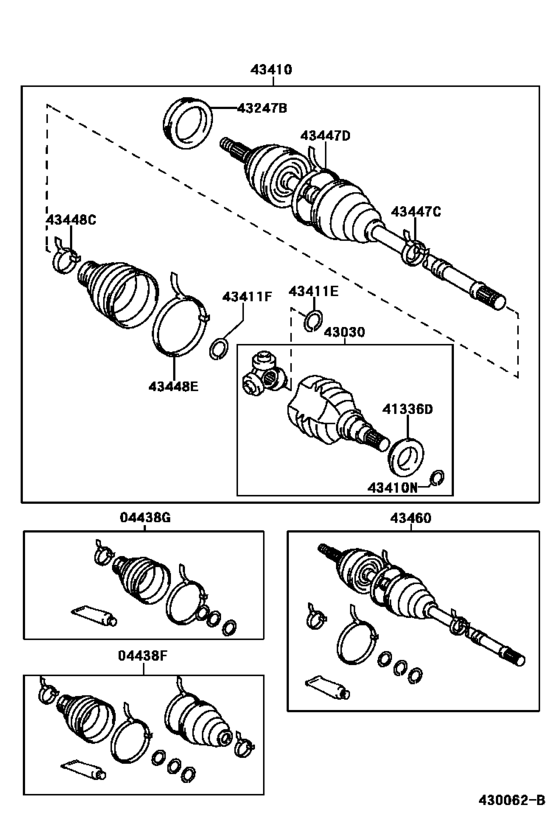

Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209)) 39

#	OEM	Part name
4438	04438-20371	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04428-20020	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-42120	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-20361	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-20420	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-42110	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-42190	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-20070	Boot Kit, Front Drive Shaft
4438	04438-20370	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-20330	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-20360	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-32020	Cover, Dust(For Differential Side Gear Shaft)
43030	43040-20020	Joint Assy, Front Drive Inboard, Lh
43030	43040-42031	Joint Assy, Front Drive Inboard, Lh
43247	43247-12010	Deflector, Rear Wheel Bearing Dust, No.1
43410	42340-17083	Shaft Assy, Front Drive, Rh
43410	42340-42040	Shaft Assy, Front Drive, Rh
43410	90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43410	42340-17081	Shaft Assy, Rear Drive, Lh
43410	90178-22001	Nut (For Axle Shaft)
43410	42340-17082	Shaft Assy, Front Drive, Rh
43411	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43411	90520-26048	Ring, Shaft Snap (For Front Drive Inner Shaft Inner)
43411	90520-25037	Ring, Shaft Snap (For Front Drive Inner Shaft Outer)
43447	42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-20030	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43447	42345-16060	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448	42345-16050	Clamp (For Front Axle Outboard Joint Boot Rh)
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448	42345-30010	Clamp (For Rear Drive Shaft Inboard Joint Boot)
43460	43470-19349	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-49295	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-19346	Joint Assy, Rear Drive Shaft Outboard, Lh
43460	43470-19347	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-19348	Shaft Assy, Front Drive Outboard Joint, Rh

OEM	Part name	Category
04428-20020	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
04438-20070	Boot Kit, Front Drive Shaft	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
04438-20330	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
04438-20360	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
04438-20361	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
04438-20370	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
04438-20371	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
04438-20420	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
04438-42110	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
04438-42120	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
04438-42190	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
41336-32020	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42340-17081	Shaft Assy, Rear Drive, Lh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42340-17082	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42340-17083	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42340-42040	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42345-16050	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42345-16060	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42345-20030	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42345-30010	Clamp (For Rear Drive Shaft Inboard Joint Boot)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
43040-20020	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
43040-42031	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
43247-12010	Deflector, Rear Wheel Bearing Dust, No.1	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
43470-19346	Joint Assy, Rear Drive Shaft Outboard, Lh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
43470-19347	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
43470-19348	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
43470-19349	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
43470-49295	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
90178-22001	Nut (For Axle Shaft)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
90520-25037	Ring, Shaft Snap (For Front Drive Inner Shaft Outer)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
90520-26048	Ring, Shaft Snap (For Front Drive Inner Shaft Inner)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([09.1997 - 09.2002] RH (9709-0209))
