Search › Model › BEA11
BEA11

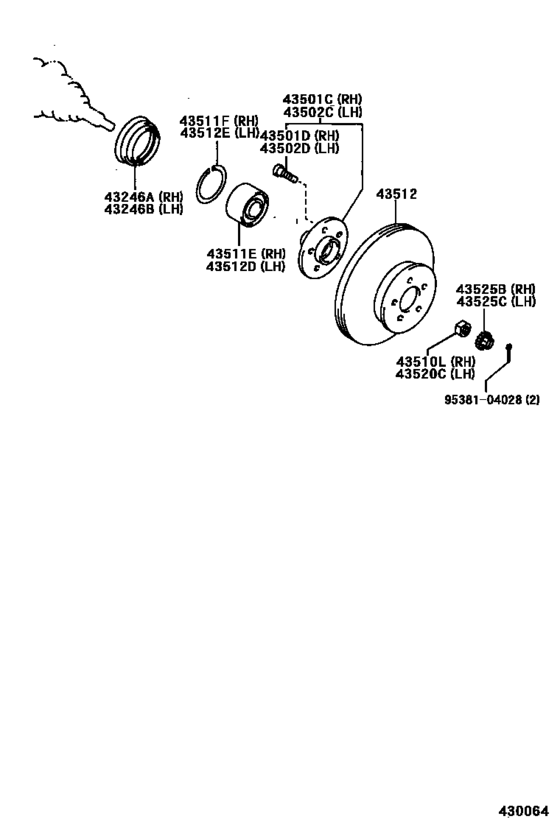

Front Axle Hub ([09.1997 - ] (9709- )) 13
| # | OEM | Part name |
|---|---|---|
| 43246 | 43246-32020 | Deflector, Front Wheel Bearing Dust, No.1 Rh |
| 43501 | 43502-44010 | Hub Sub-Assy, Front Axle, Rh |
| 43501 | 90942-02070 | Bolt, Hub |
| 43501 | 90942-02049 | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub |
| 43510 | 90178-22001 | Nut (For Axle Shaft) |
| 43510 | 90179-22020 | Nut (For Rear Axle Shaft) |
| 43511 | 90369-43009 | Bearing (For Front Axle Hub) |
| 43511 | 90521-88001 | Ring, Snap (For Rear Axle Shaft) |
| 43512 | 43512-42010 | Disc, Front |
| 43512 | 43512-42020 | Disc, Front |
| 43525 | 43525-20030 | Cap, Front Wheel Adjusting Lock |
| 9538104028 | 95381-04028 | PIN |
| OEM | Part name | Category |
|---|---|---|
| 43246-32020 | Deflector, Front Wheel Bearing Dust, No.1 Rh | Front Axle Hub ([09.1997 - ] (9709- )) |
| 43502-44010 | Hub Sub-Assy, Front Axle, Rh | Front Axle Hub ([09.1997 - ] (9709- )) |
| 43512-42010 | Disc, Front | Front Axle Hub ([09.1997 - ] (9709- )) |
| 43512-42020 | Disc, Front | Front Axle Hub ([09.1997 - ] (9709- )) |
| 43525-20030 | Cap, Front Wheel Adjusting Lock | Front Axle Hub ([09.1997 - ] (9709- )) |
| 90178-22001 | Nut (For Axle Shaft) | Front Axle Hub ([09.1997 - ] (9709- )) |
| 90179-22020 | Nut (For Rear Axle Shaft) | Front Axle Hub ([09.1997 - ] (9709- )) |
| 90369-43009 | Bearing (For Front Axle Hub) | Front Axle Hub ([09.1997 - ] (9709- )) |
| 90521-88001 | Ring, Snap (For Rear Axle Shaft) | Front Axle Hub ([09.1997 - ] (9709- )) |
| 90942-02049 | Bolt, Hub | Front Axle Hub ([09.1997 - ] (9709- )) |
| 90942-02070 | Bolt, Hub | Front Axle Hub ([09.1997 - ] (9709- )) |
| 90942-02082 | Bolt, Hub | Front Axle Hub ([09.1997 - ] (9709- )) |
| 95381-04028 | PIN | Front Axle Hub ([09.1997 - ] (9709- )) |
