Search › Model › BEA11

BEA11

Toyota RAV4-VANGUARD · 1997 · 2,471 parts · 125 categories

2,471 items

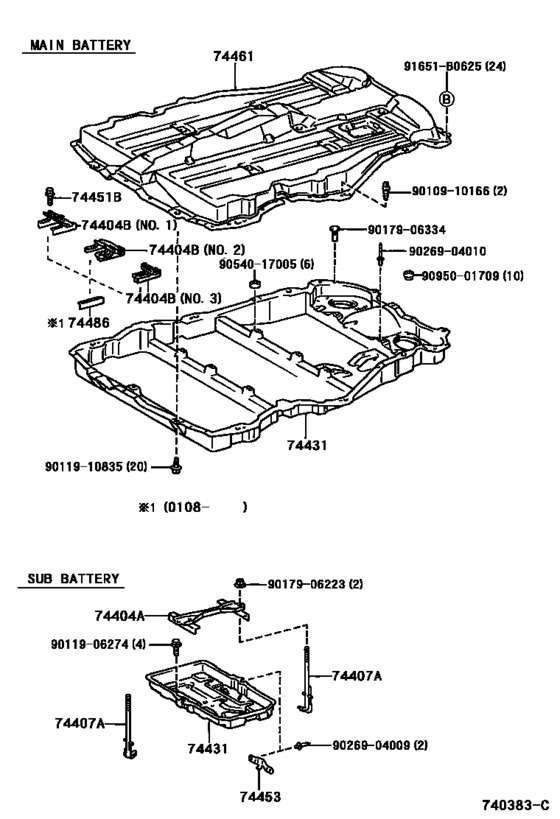

Battery Carrier ([09.1997 - ] (9709- )) 27

#	OEM	Part name
74404	74404-42030	Clamp, Battery Hold Down
74404	74404-42120	Clamp Sub-Assy, Battery
74404	74404-42121	Clamp Sub-Assy, Battery
74404	74404-42130	Clamp Sub-Assy, Battery
74404	74404-42131	Clamp Sub-Assy, Battery
74404	74404-42140	Clamp Sub-Assy, Battery
74404	74404-42141	Clamp Sub-Assy, Battery
74407	74407-42010	Bolt Sub-Assy, Battery Clamp
74431	74431-42020	Tray, Battery
74431	74431-42050	Tray, Battery
74431	74431-42051	Tray, Battery
74451	74451-42010	Bolt, Battery Clamp
74453	74454-42010	Support, Battery Carrier
74461	74461-42030	Cover, Battery
74486	74486-42010	Support, Battery Clamp, Lower
91651	91651-B0625	New Genuine Part
9010910166	90109-10166	New Genuine Part
9011906274	90119-06274	New Genuine Part
9011906274	90119-06355	BOLT
9011910835	90119-10835	New Genuine Part
9017906223	90179-06223	Clip(For Front Bumper), No.1
9017906223	90179-06206	Nut
9017906334	90179-06334	New Genuine Part
9026904009	90269-04009	New Genuine Part
9026904010	90269-04010	RIVET
9054017005	90540-17005	New Genuine Part
9095001709	90950-01709	PLUG HOLE

OEM	Part name	Category
74404-42030	Clamp, Battery Hold Down	Battery Carrier ([09.1997 - ] (9709- ))
74404-42120	Clamp Sub-Assy, Battery	Battery Carrier ([09.1997 - ] (9709- ))
74404-42121	Clamp Sub-Assy, Battery	Battery Carrier ([09.1997 - ] (9709- ))
74404-42130	Clamp Sub-Assy, Battery	Battery Carrier ([09.1997 - ] (9709- ))
74404-42131	Clamp Sub-Assy, Battery	Battery Carrier ([09.1997 - ] (9709- ))
74404-42140	Clamp Sub-Assy, Battery	Battery Carrier ([09.1997 - ] (9709- ))
74404-42141	Clamp Sub-Assy, Battery	Battery Carrier ([09.1997 - ] (9709- ))
74407-42010	Bolt Sub-Assy, Battery Clamp	Battery Carrier ([09.1997 - ] (9709- ))
74431-42020	Tray, Battery	Battery Carrier ([09.1997 - ] (9709- ))
74431-42050	Tray, Battery	Battery Carrier ([09.1997 - ] (9709- ))
74431-42051	Tray, Battery	Battery Carrier ([09.1997 - ] (9709- ))
74451-42010	Bolt, Battery Clamp	Battery Carrier ([09.1997 - ] (9709- ))
74454-42010	Support, Battery Carrier	Battery Carrier ([09.1997 - ] (9709- ))
74461-42030	Cover, Battery	Battery Carrier ([09.1997 - ] (9709- ))
74486-42010	Support, Battery Clamp, Lower	Battery Carrier ([09.1997 - ] (9709- ))
90109-10166	New Genuine Part	Battery Carrier ([09.1997 - ] (9709- ))
90119-06274	New Genuine Part	Battery Carrier ([09.1997 - ] (9709- ))
90119-06355	BOLT	Battery Carrier ([09.1997 - ] (9709- ))
90119-10835	New Genuine Part	Battery Carrier ([09.1997 - ] (9709- ))
90179-06206	Nut	Battery Carrier ([09.1997 - ] (9709- ))
90179-06223	Clip(For Front Bumper), No.1	Battery Carrier ([09.1997 - ] (9709- ))
90179-06334	New Genuine Part	Battery Carrier ([09.1997 - ] (9709- ))
90269-04009	New Genuine Part	Battery Carrier ([09.1997 - ] (9709- ))
90269-04010	RIVET	Battery Carrier ([09.1997 - ] (9709- ))
90540-17005	New Genuine Part	Battery Carrier ([09.1997 - ] (9709- ))
90950-01709	PLUG HOLE	Battery Carrier ([09.1997 - ] (9709- ))
91651-B0625	New Genuine Part	Battery Carrier ([09.1997 - ] (9709- ))
