| 88374-30010 |
Valve, Service, No.1 |

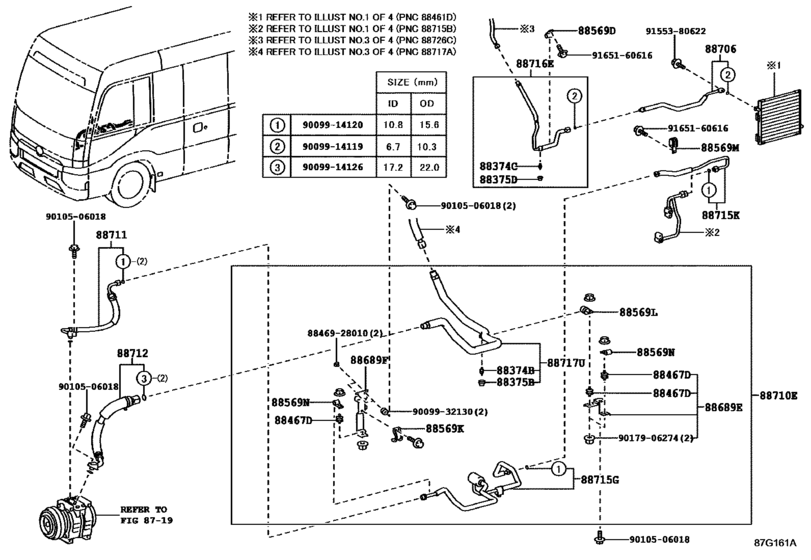

Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88375-30280 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88375-30290 |
Cap, Service Valve (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88467-12030 |
Cushion, Cooler Condenser, No.1 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88469-28010 |
Collar, Condenser Bracket, No.1 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88569-30560 |
Clamp, Piping, No.2 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88569-36120 |
Clamp, Cooler, No.2 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88569-36190 |
Clamp, Cooler, No.1 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88569-36220 |
Clamp, Cooler, No.2 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88569-36270 |
Clamp, Piping, No.1 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88688-36260 |
Bracket, Cooler, No.1 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88688-36580 |
Bracket, Cooler, No.2 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88706-36170 |
Pipe Sub-Assy, Liquid |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88710-36540 |
Tube & Accessory Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88711-36162 |
Hose, Cooler Refrigerant Discharge, No.1 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88712-36171 |
Hose, Cooler Refrigerant Suction, No.1 |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88715-36770 |
Tube, Discharge, K |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88715-36820 |
Tube, Discharge, G |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88716-36A50 |
Pipe, Cooler Refrigerant Liquid, E |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 88717-36160 |
Pipe, Cooler Refrigerant Suction, B |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 90099-14126 |
OIL SEAL |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 90099-32130 |
Grommet (For Power Take-Off Cable Bracket) |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 90105-06018 |
Bolt (For Throttle Valve Cam Set) |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 90179-06274 |
Nut |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 91553-80622 |
BOLT FLANGE |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
| 91651-60616 |
BOLT |
Heating & Air Conditioning - Cooler Piping ([01.2017 - ] PIPING(FLOOR) (1701- )BB60..RHD) |
