BB60

Toyota COASTER · 2017 · 3,917 parts · 249 categories
BB60 ×

← Back to categories

3,917 items

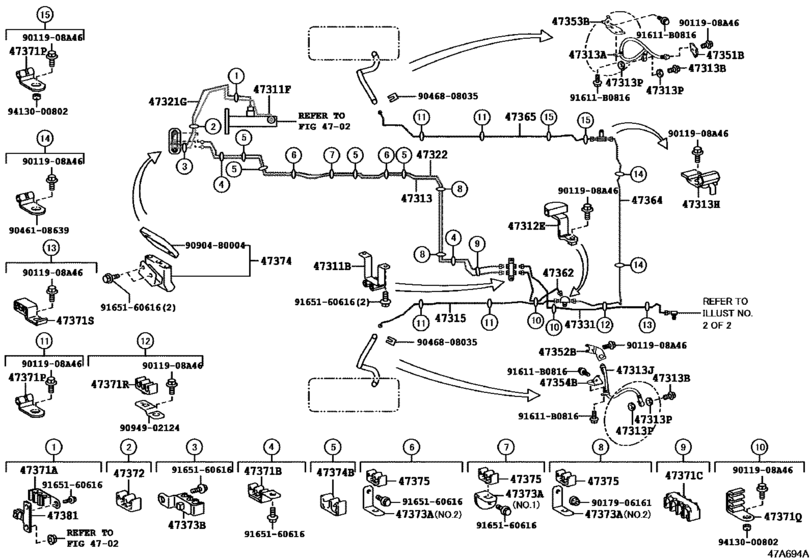

Brake Tube & Clamp ([01.2017 - ] FR BRAKE TUBE(DISC BRAKE),W/O(ABS) (1701- )BB60,HZB70..RHD) 50
#OEMPart name
47311 90904-12083 Way, No.1(For Front Brake Tube)
47311 47311-36542 Tube, Front Brake, Frame No.1
47312 90413-10317 Way, No.3(For Front Brake Tube)
47313 47313-36382 Tube, Front Brake, No.3
47313 90947-02H77 Hose, Flexible, No.1(For Front)
47313 90947-02H83 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90401-10023 Bolt, Union(For Master Cylinder Fluid Outlet)
47313 90412-10311 Way, No.2(For Front Brake Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47315 47315-36380 Tube, Front Brake, No.5
47315 47315-36390 Tube, Front Brake, No.5
47321 47321-36362 Tube, Rear Brake, Frame No.1
47322 47322-36482 Tube, Rear Brake, No.2
47331 47331-36300 Tube, Rear Brake, No.10
47351 47351-36211 Bracket, Flexible Hose, No.1
47351 47351-36241 Bracket, Flexible Hose, No.1
47352 47352-36201 Bracket, Flexible Hose, No.2
47352 47352-36231 Bracket, Flexible Hose, No.2
47353 47353-36260 Bracket, Flexible Hose, No.3
47354 47354-36150 Bracket, Flexible Hose, No.4
47362 47362-36070 Tube, Front Brake, No.11
47364 47364-36170 Tube, Front Brake, No.13
47365 47365-36120 Tube, Front Brake, No.14
47365 47365-36140 Tube, Front Brake, No.14
47371 90949-04070 Clamp, Brake Tube, No.1
47371 47371-28020 Clamp, Brake Tube, No.2
47371 90949-01540 Clamp, Brake Tube, No.7
47371 90461-06112 Clamp, Brake Tube, No.6
47371 47371-36060 Clamp, Brake Tube, No.2
47371 90949-01D59 Clamp, Brake Tube, No.3
47371 90949-01536 Clamp, Brake Tube, No.15
47372 90464-00903 Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.6
47373 47381-20320 Bracket, Brake Tube Clamp, No.2
47373 47381-36160 Bracket, Brake Tube Clamp No.1
47373 90949-04068 Clamp, Brake Tube, No.3
47374 47307-36110 Connector, Tube
47374 90464-00904 Clamp, Height Control Tube No.9
47375 90480-01619 Clamp, Brake Tube, No.5
47381 47381-36120 Bracket, Brake Tube Clamp No.1
91611 91611-B0816 Bolt
9011908 90119-08A46 BOLT WWASHER
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046108639 90461-08639 Clamp, Brake Tube, No.7
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9090480004 90904-80004 New Genuine Part
9165160616 91651-60616 BOLT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
