| 04493-36171 |
Cylinder Kit, Brake Master |

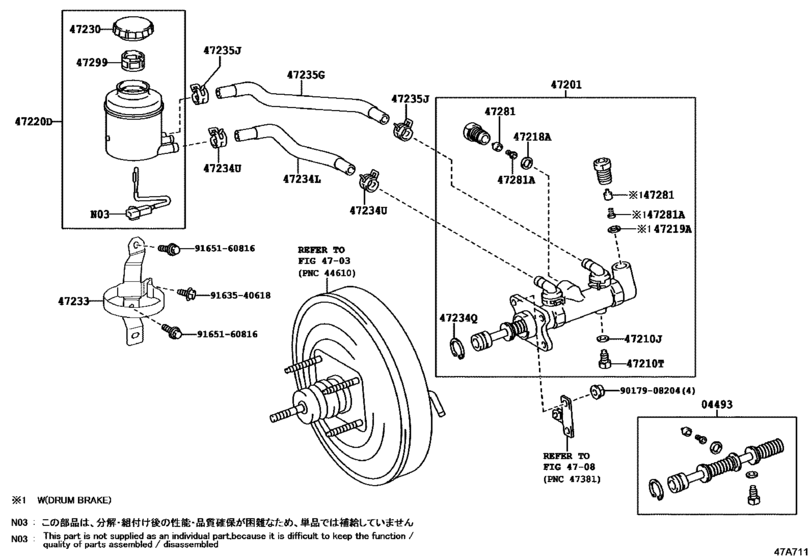

Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 04493-37022 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 47201-36382 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 47201-36402 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 47220-36120 |
Reservoir Assy, Brake Master Cylinder |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 47233-36060 |
Bracket, Reservoir |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 47234-36160 |
Tube, Reservoir, No.1 |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 47235-36160 |
Tube, Brake Master Cyrinder Reservoir, No.2 |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 47281-30020 |
Valve Assy, Brake Master Cylinder Outlet Check |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 90080-11396 |
Bolt |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 90080-18070 |
NUT, WWASHER |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 90109-06008 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 90430-06104 |
Gasket(For Brake Actuator) |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 90430-11001 |
Gasket(For Fluid Outlet Plug) |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 90501-05012 |
Spring, Compression |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 91635-40618 |
BOLT W-WASHER |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 91651-60816 |
BOLT |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 96133-41500 |
Clamp Or Clip(For Air Hose, No.5) |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
| 96151-03000 |
Ring, Snap (For C-0 Accumulator Piston Spacer) |
Brake Master Cylinder ([01.2017 - ] (1701- )BB60..RHD) |
