BB53

Toyota COASTER · 2000 · 4,455 parts · 195 categories

← Back to categories

4,455 items

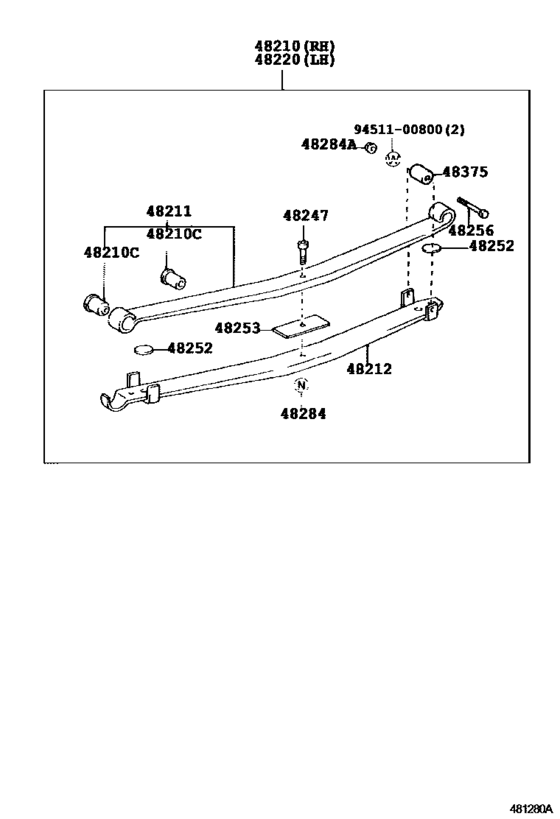

Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- )) 17

#	OEM	Part name
48210	48210-3C200	Spring Assy, Rear Lh
48210	90389-16015	Bimetal Formed Bush(For Front Spring)
48210	90389-16030	BUSH
48210	90389-16018	Bush(For Rear Spring Leaf)
48211	48201-3C190	Leaf, Rear Spring, No.1
48211	48201-3C200	Leaf, Rear Spring, No.1
48212	48202-3C190	Leaf, Rear Spring, No.2
48212	48202-3C200	Leaf, Rear Spring, No.2
48220	48210-3C190	Spring Assy, Rear Rh
48247	48247-3B840	Bolt, Rear Spring, Center
48252	48252-3B800	Silencer, Front Spring, No.1
48253	48253-3B730	Spacer, Rear Spring, No.1
48256	48256-26010	Bolt, Hexagon(For Rear Spring Clip Set)
48284	48284-37130	Nut, Front Spring Center Bolt
48284	48284-20440	Nut, Rear Spring Clip
48375	48375-36010	Damper, Leaf Spring Dynamic
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
48201-3C190	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48201-3C200	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48202-3C190	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48202-3C200	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48210-3C190	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48210-3C200	Spring Assy, Rear Lh	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48247-3B840	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48252-3B800	Silencer, Front Spring, No.1	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48253-3B730	Spacer, Rear Spring, No.1	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48256-26010	Bolt, Hexagon(For Rear Spring Clip Set)	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48284-20440	Nut, Rear Spring Clip	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48284-37130	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
48375-36010	Damper, Leaf Spring Dynamic	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
90389-16015	Bimetal Formed Bush(For Front Spring)	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
90389-16018	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
90389-16030	BUSH	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
94511-00800	WASHERSPRING	Rear Spring & Shock Absorber ([12.2000 - 01.2007] 2-LEAF (0012-0701)BB53,RZB53 ; (0701- ))
