Search › Model › BB53

BB53

Toyota COASTER · 2000 · 4,455 parts · 195 categories
BB53 ×

← Back to categories

4,455 items

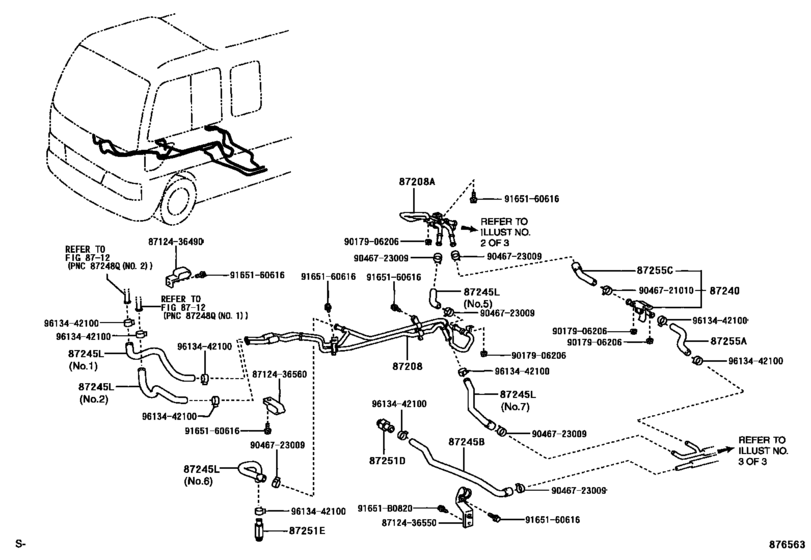

Heating & Air Conditioning - Water Piping ([10.2003 - 01.2007] FRONT (0310-0701)BB53) 26
#OEMPart name
87208 87208-3B060 Pipe Sub-Assy, Heater Water
87208 87208-36820 Pipe Sub-Assy, Heater Water, A
87240 87240-36140 Valve Assy, Heater Water
87245 87245-3E080 Hose, Heater Water, Inlet B
87245 87245-3E320 Hose, Heater Water, Outlet A
87245 87245-3C510 Hose, Heater Water, Outlet A
87245 87245-3E330 Hose, Heater Water, Inlet B
87245 87245-3C520 Hose, Heater Water, Inlet B
87245 87245-3E360 Hose, Heater Water, L
87245 87245-3E370 Hose, Heater Water, L
87245 87245-3E380 Hose, Heater Water, Outlet B
87245 87245-3C380 Hose, Heater Water, Outlet B
87251 87251-36240 Joint, Water, No.1
87251 87251-36251 Joint, Water, No.2
87255 87245-3E030 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-3E010 Hose, Rear Heater Water Inlet, C
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
8712436490 87124-36490 Clamp, Heater
8712436550 87124-36550 Clamp, Heater
8712436560 87124-36560 Clamp, Heater
9017906206 90179-06206 Nut
9046721010 90467-21010 Clip(For Ventilation Hose No.2)
9046723009 90467-23009 Clip Or Clamp(For Ventilation Hose)
9165160616 91651-60616 BOLT
9613442100 96134-42100 Clip(For Water By-Pass Hose Assy)
