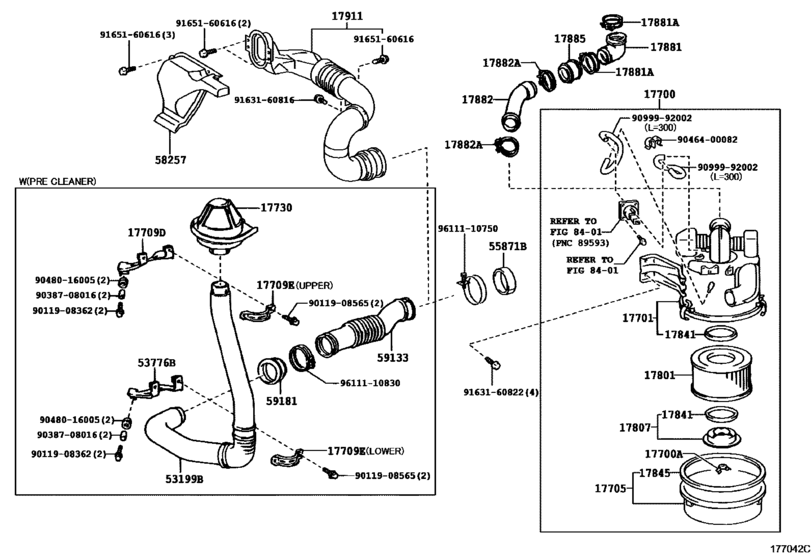

| 17700-58691 |
Cleaner Assy, Air |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 17701-58360 |
Case Sub-Assy, Air Cleaner |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 17705-58360 |
Cap Sub-Assy, Air Cleaner |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 17730-66010 |
Precleaner Assy, Air W/hose |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 17801-58010 |
Element Sub-Assy, Air Cleaner Filter |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 17807-56020 |
Plate Sub-Assy, Air Cleaner Filter Set |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 17841-44030 |
Gasket, Filter Element |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 17845-56020 |
Gasket, Air Cleaner Cap |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 17881-58210 |
Hose, Air Cleaner, No.1 |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 17882-58130 |
Hose, Air Cleaner, No.2 |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 17885-17010 |
Pipe, Air Cleaner |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 52810-36020 |
Duct, Cool Air Intake, No.1 |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 53207-36080 |
Duct Sub-Assy, Cool Air Intake |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 53772-36040 |
Bracket, Air Cleaner Inlet, No.1 |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 53773-60020 |
Bracket, Air Cleaner Inlet, No.2 |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 53773-90B00 |
Bracket, Air Cleaner Inlet, No.2 - AIR CLEANER INLET DUCT |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 53776-36031 |
Bracket, Cool Air Intake Duct Mount, No.2 |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 55871-36020 |
Seal, Air Duct |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 58257-36070 |
Plate, Air Cleaner House |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 59133-36040 |
Hose, Cool Air Intake, No.3 |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 59181-36010 |
Seal, Air Cleaner Inlet Duct, No.1 |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 90119-08362 |
BOLT |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 90119-08565 |
BOLT |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 90175-08008 |
Nut, Wing(For Air Cleaner) |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 90387-08016 |
Collar(For Intake Air Connector) |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 90464-00082 |
Clamp(For Resistive Cord) |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 90480-16005 |
Grommet(For Air Cleaner Bracket) |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 90999-92002 |
Air Hose (300 mm) |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 91631-60816 |
BOLT |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 91631-60822 |
BOLT |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 91651-60616 |
BOLT |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 96111-10750 |
Clamp, Hose(For Air Cleaner Duct) |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 96111-10780 |
Clamp, Hose(For Air Connector) |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 96111-10830 |
Clamp, Hose(For Air Connector) |
Air Cleaner ([08.2011 - ] (1108- )14B) |
| 96111-10900 |
Clamp, Hose |
Air Cleaner ([08.2011 - ] (1108- )14B) |
