BB36

Toyota COASTER · 1984 · 5,242 parts · 211 categories

5,242 items

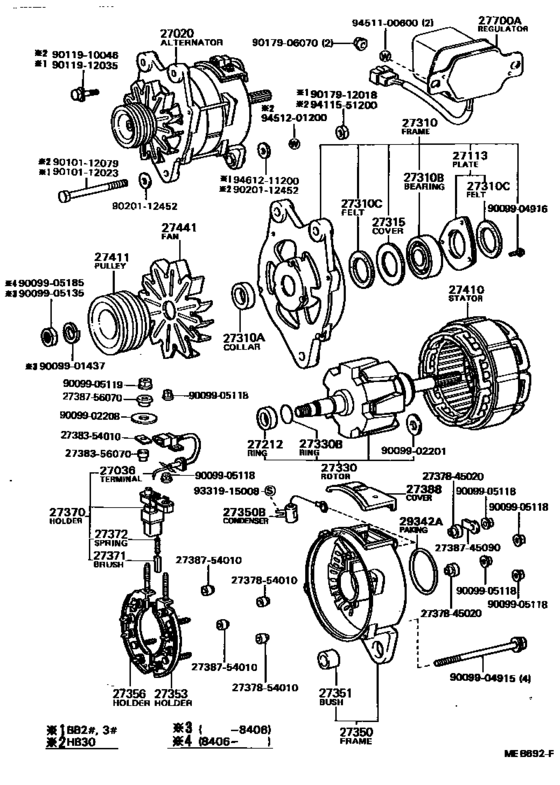

Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC) 82

#	OEM	Part name
27020	27020-56120	Alternator Assy
27020	27020-56230	Alternator Assy
27036	27036-57080	Terminal Sub-Assy, Lead Wire, Alternator
27036	27036-57060	Terminal Sub-Assy, Lead Wire, Alternator
27036	27036-57110	Terminal Sub-Assy, Lead Wire, Alternator
27113	27312-56070	Plate, Bearing Retainer, Alternator
27113	27312-57060	Plate, Bearing Retainer, Alternator
27212	27333-57060	Ring, Space(For Alternator Rotor)
27212	27412-54040	Ring, Space(For Alternator Rotor)
27310	27310-56110	Frame Assy, Drive End, Alternator
27310	27310-56120	Frame Assy, Drive End, Alternator
27310	27412-57060	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-19251	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10120	Bearing(For Alternator Drive End Frame)
27310	90099-10137	Bearing(For Alternator Drive End Frame)
27310	90099-02207	Felt(For Alternator Drive End Frame)
27310	90099-02209	Felt(For Alternator Drive End Frame)
27315	27315-56070	Cover, Alternator Felt, Inner No.1
27315	27315-57060	Cover, Alternator Felt, Inner No.1
27330	27330-56110	Rotor Assy, Alternator
27330	27330-68050	Rotor Assy, Alternator
27330	90099-07103	Ring, Snap(For Alternator Rotor)
27330	90099-07108	Ring, Snap(For Alternator Rotor)
27350	27350-56110	Frame Assy, Rectifier End
27350	27350-56120	Frame Assy, Rectifier End
27350	90099-52074	Condenser, Alternator
27350	90099-52082	Condenser, Alternator
27351	27351-56013	Bush(For Alternator Rectifier End Frame)
27351	27351-56070	Bush(For Alternator Rectifier End Frame)
27353	27353-54020	Holder, W/rectifier Positive, Alternator
27353	27353-54010	Holder, W/rectifier Positive, Alternator
27353	27353-56080	Holder, W/rectifier Positive, Alternator
27356	27356-54020	Holder, W/rectifier Negative, Alternator
27356	27356-54010	Holder, W/rectifier Negative, Alternator
27356	27356-56080	Holder, W/rectifier Negative, Alternator
27370	27370-56120	Holder Assy, Alternator Brush
27370	27370-57080	Holder Assy, Alternator Brush
27370	27370-56210	Holder Assy, Alternator Brush
27370	27370-57110	Holder Assy, Alternator Brush
27371	27371-56070	Brush, Alternator
27371	27371-54412	Brush, Alternator
27372	27372-56070	Spring, Alternator Brush
27388	27388-57060	Cover, Frame Brush
27388	27388-56100	Cover, Frame Brush
27388	27388-57110	Cover, Frame Brush
27410	27410-56080	Stator Assy, Alternator
27410	27410-57020	Stator Assy, Alternator
27411	27411-56121	Pulley, Alternator
27411	27411-56210	Pulley, Alternator
27441	27441-56090	Fan, Alternator
27441	27441-57030	Fan, Alternator
27700	27700-57070	Regulator Assy, Generator
29342	90099-14055	Packing, Vacuum Pump
2737845020	27378-45020	Insulator, Alternator, No.1
2737854010	27378-54010	Insulator, Alternator, No.2
2738354010	27383-54010	Washer, Alternater Terminal Insulator, No.1
2738356070	27383-56070	Washer, Alternater Terminal Insulator, No.1
2738745090	27387-45090	Insulator, Terminal
2738754010	27387-54010	Insulator, Terminal
2738756070	27387-56070	Insulator, Terminal
9009901437	90099-01437	New Genuine Part
9009902201	90099-02201	New Genuine Part
9009902208	90099-02208	New Genuine Part
9009904915	90099-04915	New Genuine Part
9009904916	90099-04916	New Genuine Part
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009905135	90099-05135	New Genuine Part
9009905185	90099-05185	NUT
9010112023	90101-12023	Bolt(For Alternator)
9010112079	90101-12079	New Genuine Part
9011910046	90119-10046	Bolt, No.1 (For Center Support Bearing)
9011912035	90119-12035	New Genuine Part
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017912018	90179-12018	New Genuine Part
9020112452	90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)
9331915008	93319-15008	SCREW
9411551200	94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)
9451100600	94511-00600	Washer, Lock, No.2
9451201200	94512-01200	Washer
9461211200	94612-11200	Washer

OEM	Part name	Category
27020-56120	Alternator Assy	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27020-56230	Alternator Assy	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27036-57060	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27036-57080	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27036-57110	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27310-56110	Frame Assy, Drive End, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27310-56120	Frame Assy, Drive End, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27312-56070	Plate, Bearing Retainer, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27312-57060	Plate, Bearing Retainer, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27315-56070	Cover, Alternator Felt, Inner No.1	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27315-57060	Cover, Alternator Felt, Inner No.1	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27330-56110	Rotor Assy, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27330-68050	Rotor Assy, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27333-57060	Ring, Space(For Alternator Rotor)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27350-56110	Frame Assy, Rectifier End	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27350-56120	Frame Assy, Rectifier End	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27351-56013	Bush(For Alternator Rectifier End Frame)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27351-56070	Bush(For Alternator Rectifier End Frame)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27353-54010	Holder, W/rectifier Positive, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27353-54020	Holder, W/rectifier Positive, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27353-56080	Holder, W/rectifier Positive, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27356-54010	Holder, W/rectifier Negative, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27356-54020	Holder, W/rectifier Negative, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27356-56080	Holder, W/rectifier Negative, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27370-56120	Holder Assy, Alternator Brush	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27370-56210	Holder Assy, Alternator Brush	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27370-57080	Holder Assy, Alternator Brush	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27370-57110	Holder Assy, Alternator Brush	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27371-54412	Brush, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27371-56070	Brush, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27372-56070	Spring, Alternator Brush	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27378-45020	Insulator, Alternator, No.1	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27378-54010	Insulator, Alternator, No.2	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27383-54010	Washer, Alternater Terminal Insulator, No.1	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27383-56070	Washer, Alternater Terminal Insulator, No.1	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27387-45090	Insulator, Terminal	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27387-54010	Insulator, Terminal	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27387-56070	Insulator, Terminal	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27388-56100	Cover, Frame Brush	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27388-57060	Cover, Frame Brush	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27388-57110	Cover, Frame Brush	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27410-56080	Stator Assy, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27410-57020	Stator Assy, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27411-56121	Pulley, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27411-56210	Pulley, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27412-54040	Ring, Space(For Alternator Rotor)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27412-57060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27441-56090	Fan, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27441-57030	Fan, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
27700-57070	Regulator Assy, Generator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-01437	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-02201	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-02207	Felt(For Alternator Drive End Frame)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-02208	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-02209	Felt(For Alternator Drive End Frame)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-04915	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-04916	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-05118	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-05119	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-05135	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-05185	NUT	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-07103	Ring, Snap(For Alternator Rotor)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-07108	Ring, Snap(For Alternator Rotor)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-10120	Bearing(For Alternator Drive End Frame)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-10137	Bearing(For Alternator Drive End Frame)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-14055	Packing, Vacuum Pump	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-19251	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-52074	Condenser, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90099-52082	Condenser, Alternator	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90101-12023	Bolt(For Alternator)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90101-12079	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90119-10046	Bolt, No.1 (For Center Support Bearing)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90119-12035	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90179-12018	New Genuine Part	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
93319-15008	SCREW	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
94511-00600	Washer, Lock, No.2	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
94512-01200	Washer	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
94612-11200	Washer	Alternator ([05.1982 - 08.1988] 24V 40A (8205-8808)3B,2H..WOC ; (8808-9001)2H..WOC)
