BB31

Toyota COASTER · 1983 · 5,789 parts · 215 categories

← Back to categories

5,789 items

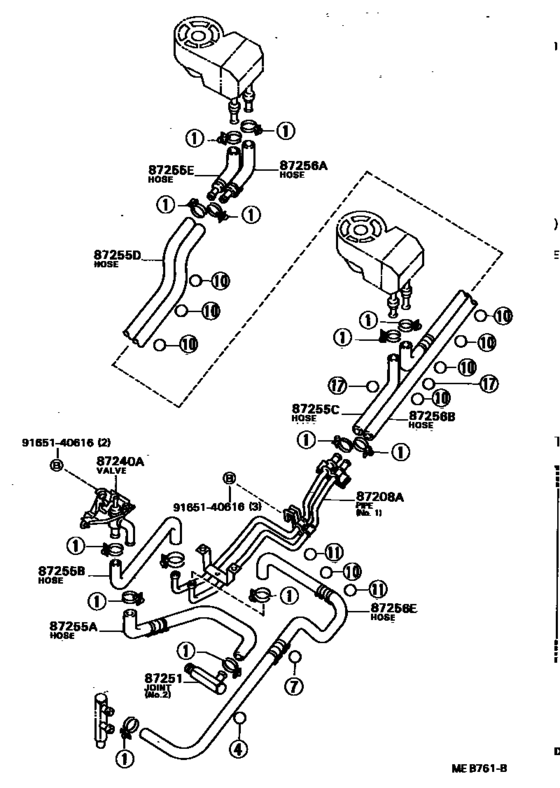

Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C) 17

#	OEM	Part name
87208	87208-90B14	Pipe Sub-Assy, Heater Water, A
87240	87240-90B01	Valve Assy, Rear Heater Water
87251	87251-30200	Union(For Water By-Pass Hose)
87251	87251-60010	Joint Or Union, Front Heater Hose Through Or Inlet Valve
87251	87251-90B00	Joint Or Union, Water Hose Through
87255	87209-90B05	Hose, Rear Heater Water Inlet, A(From Engine)
87255	87245-90B09	Hose, Rear Heater Water Inlet, B
87255	99556-31930	Hose, Rear Heater Water Inlet, C
87255	99556-32000	Hose, Heater Water
87255	99556-31950	Hose, Rear Heater Water Inlet, D
87255	87209-90B19	Hose, Heater Water, Inlet B
87256	99556-32980	Hose, Rear Heater Water Outlet, B
87256	99556-33000	Hose, Rear Heater Water Outlet, B
87256	87209-90B21	Hose, Rear Heater Water Outlet, E (To Engine)
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part

OEM	Part name	Category
87208-90B14	Pipe Sub-Assy, Heater Water, A	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
87209-90B05	Hose, Rear Heater Water Inlet, A(From Engine)	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
87209-90B19	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
87209-90B21	Hose, Rear Heater Water Outlet, E (To Engine)	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
87240-90B01	Valve Assy, Rear Heater Water	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
87245-90B09	Hose, Rear Heater Water Inlet, B	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
87251-30200	Union(For Water By-Pass Hose)	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
87251-60010	Joint Or Union, Front Heater Hose Through Or Inlet Valve	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
87251-90B00	Joint Or Union, Water Hose Through	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
90080-11395	New Genuine Part	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
91621-60614	Bolt(For Transaxle & Engine Setting)	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
91651-40616	BOLT	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
99556-31930	Hose, Rear Heater Water Inlet, C	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
99556-31950	Hose, Rear Heater Water Inlet, D	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
99556-32000	Hose, Heater Water	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
99556-32980	Hose, Rear Heater Water Outlet, B	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
99556-33000	Hose, Rear Heater Water Outlet, B	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )BB20,21,30,31..39C,44C)
