BB26

Toyota COASTER · 1984 · 6,801 parts · 234 categories
BB26 ×

← Back to categories

6,801 items

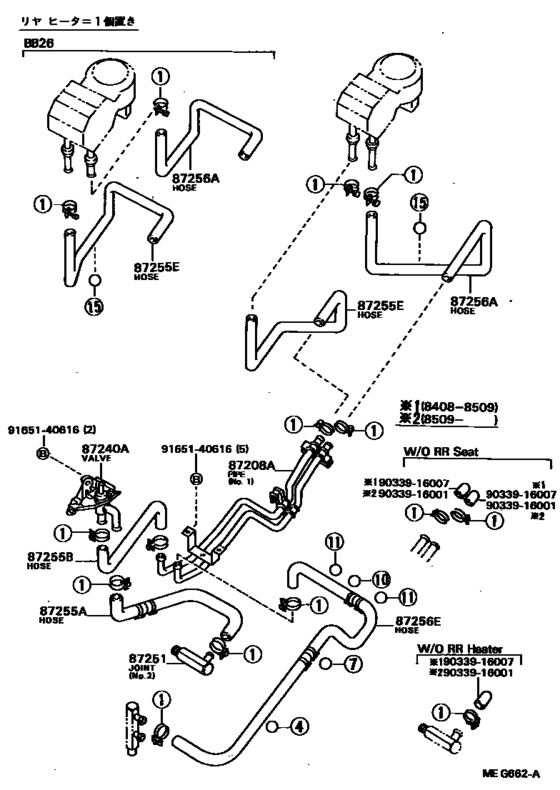

Heating & Air Conditioning - Water Piping ([08.1984 - ] (8408- )BB26,36) 21
#OEMPart name
87208 87208-90B03 Pipe Sub-Assy, Heater Water, A
87240 87240-90B01 Valve Assy, Rear Heater Water
87247 87245-90B12 Hose, Heater Water, A
87251 87251-30200 Union(For Water By-Pass Hose)
87251 87251-60010 Joint Or Union, Front Heater Hose Through Or Inlet Valve
87251 87251-90B00 Joint Or Union, Water Hose Through
87255 87209-90B05 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87209-90B22 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87209-90B10 Hose, Rear Heater Water Inlet, C - REAR HEATER WATER INLET, A(FROM ENGINE)
87255 87245-90B09 Hose, Rear Heater Water Inlet, B
87255 87209-90B12 Hose, Rear Heater Water Inlet, D
87255 87245-90B34 Hose, Rear Heater Water Inlet, E(To Heater Unit)
87256 87245-90B33 Hose, Rear Heater Water Outlet, A (From Heater Unit)
87256 99556-30980 Hose, Heater Water, Inlet A
87256 99556-31000 Hose, Heater Water, Inlet B
87256 87209-90B21 Hose, Rear Heater Water Outlet, E (To Engine)
9033916001 90339-16001 Plug, Heater Water
9033916007 90339-16007 Plug
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
