BB26

Toyota COASTER · 1984 · 6,801 parts · 234 categories

6,801 items

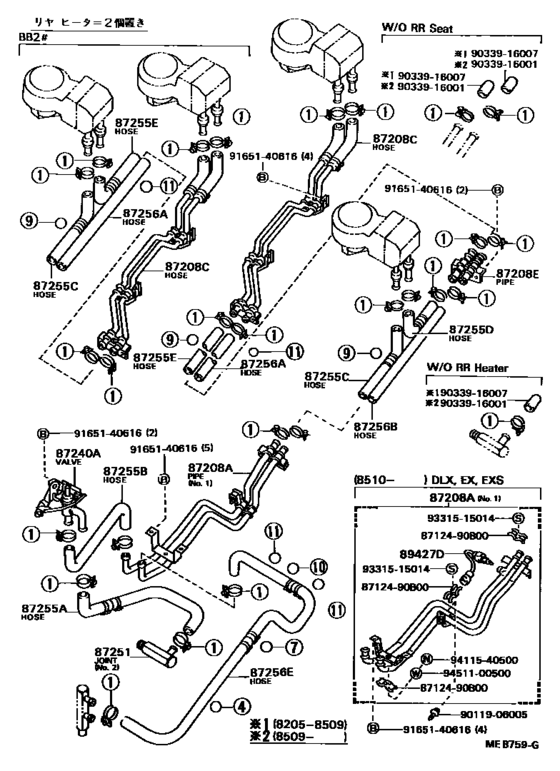

Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24) 28

#	OEM	Part name
87208	87208-90B03	Pipe Sub-Assy, Heater Water, A
87208	87209-90B13	Pipe Sub-Assy, Heater Water, C
87240	87240-90B01	Valve Assy, Rear Heater Water
87247	87245-90B12	Hose, Heater Water, A
87251	87251-30200	Union(For Water By-Pass Hose)
87251	87251-60010	Joint Or Union, Front Heater Hose Through Or Inlet Valve
87251	87251-90B00	Joint Or Union, Water Hose Through
87255	87209-90B05	Hose, Rear Heater Water Inlet, A(From Engine)
87255	87209-90B22	Hose, Rear Heater Water Inlet, A(From Engine)
87255	87209-90B10	Hose, Rear Heater Water Inlet, C - REAR HEATER WATER INLET, A(FROM ENGINE)
87255	87245-90B09	Hose, Rear Heater Water Inlet, B
87255	87209-90B11	Hose, Rear Heater Water Inlet, C
87255	87209-90B12	Hose, Rear Heater Water Inlet, D
87255	87245-90B34	Hose, Rear Heater Water Inlet, E(To Heater Unit)
87256	87245-90B33	Hose, Rear Heater Water Outlet, A (From Heater Unit)
87256	99556-30980	Hose, Heater Water, Inlet A
87256	99556-31000	Hose, Heater Water, Inlet B
87256	87209-90B21	Hose, Rear Heater Water Outlet, E (To Engine)
8712490	87124-90B00	Bracket, Heater Water Pipe, No.1
9011906005	90119-06005	New Genuine Part
9033916001	90339-16001	Plug, Heater Water
9033916007	90339-16007	Plug
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9331515014	93315-15014	New Genuine Part
9411540500	94115-40500	Nut(For Lpg Filter Stud Bolt Set)
9451100500	94511-00500	Washer, Cover Set, No.2

OEM	Part name	Category
87124-90B00	Bracket, Heater Water Pipe, No.1	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87208-90B03	Pipe Sub-Assy, Heater Water, A	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87209-90B05	Hose, Rear Heater Water Inlet, A(From Engine)	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87209-90B10	Hose, Rear Heater Water Inlet, C - REAR HEATER WATER INLET, A(FROM ENGINE)	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87209-90B11	Hose, Rear Heater Water Inlet, C	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87209-90B12	Hose, Rear Heater Water Inlet, D	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87209-90B13	Pipe Sub-Assy, Heater Water, C	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87209-90B21	Hose, Rear Heater Water Outlet, E (To Engine)	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87209-90B22	Hose, Rear Heater Water Inlet, A(From Engine)	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87240-90B01	Valve Assy, Rear Heater Water	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87245-90B09	Hose, Rear Heater Water Inlet, B	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87245-90B12	Hose, Heater Water, A	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87245-90B33	Hose, Rear Heater Water Outlet, A (From Heater Unit)	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87245-90B34	Hose, Rear Heater Water Inlet, E(To Heater Unit)	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87251-30200	Union(For Water By-Pass Hose)	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87251-60010	Joint Or Union, Front Heater Hose Through Or Inlet Valve	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
87251-90B00	Joint Or Union, Water Hose Through	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
90080-11395	New Genuine Part	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
90119-06005	New Genuine Part	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
90339-16001	Plug, Heater Water	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
90339-16007	Plug	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
91621-60614	Bolt(For Transaxle & Engine Setting)	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
91651-40616	BOLT	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
93315-15014	New Genuine Part	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
94115-40500	Nut(For Lpg Filter Stud Bolt Set)	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
94511-00500	Washer, Cover Set, No.2	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
99556-30980	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
99556-31000	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([07.1985 - ] (8205- )BB20,21,30,31..26S,29S ; (8507- )B B26,36 ; (8808- )BB23,24)
