Search › Model › BB24

BB24

Toyota COASTER · 1988 · 5,536 parts · 209 categories

5,536 items

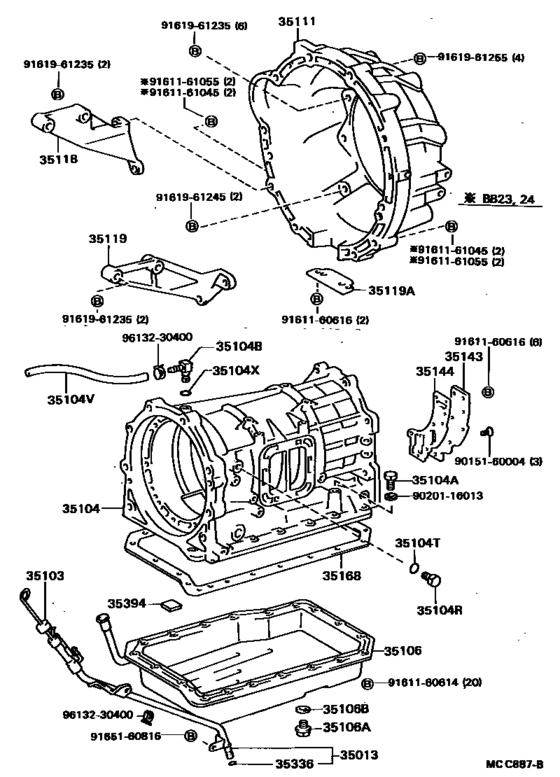

Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32) 42

#	OEM	Part name
35013	35013-36050	Tube Sub-Assy, Transmission Oil Filler
35103	35103-36020	Gage Sub-Assy, Transmission Oil Level
35103	35103-36021	Gage Sub-Assy, Transmission Oil Level
35104	35104-36020	Case Sub-Assy, Automatic Transmission
35104	35104-36021	Case Sub-Assy, Automatic Transmission
35104	90341-16010	Plug, Automatic Transmission Case
35104	90930-03094	Plug, Breather, No.1 (Atm)
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	90447-11026	Hose (For Breather Plug)
35104	90301-06005	Ring, O (For Breather Plug)
35106	35106-36030	Pan Sub-Assy, Automatic Transmission Oil
35106	35106-36031	Pan Sub-Assy, Automatic Transmission Oil
35106	90341-18057	Drain Plug (with Magnet)
35106	12157-10010	Gasket (For Drain Plug)
35111	35111-36010	Housing, Automatic Transmission
35118	33118-36021	Plate, Stiffener, Rh(Mtm)
35119	33119-36040	Plate, Stiffener, Lh(Mtm)
35119	33119-36042	Plate, Stiffener, Lh(Mtm)
35119	35119-36010	Cover, Transmission Housing
35143	35143-36010	Cover, Transmission Case, Rear
35144	35144-36010	Gasket, Transmission Case Rear Cover
35144	35144-60010	Gasket, Transmission Case Rear Cover
35168	35168-36010	Gasket, Automatic Transmission Oil Pan
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
9015160004	90151-60004	SCREW
9020116013	90201-16013	Washer, Plate (For Automatic Transmission Case)
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)
9161161045	91611-61045	Bolt, Hexagon(For Idle Gear Bolt Lock)
9161161045	91612-61045	Bolt(For Transaxle & Engine Setting)
9161161055	91611-61055	Bolt(For Clutch Release Cylinder Setting)
9161961235	91619-61235	BOLT
9161961245	91619-61245	Bolt(For Transaxle & Engine Setting)
9161961255	91619-61255	Bolt(For Transaxle & Engine Setting)
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9613230400	96132-30400	Clip Or Clamp(For Ventilation Hose)
9613230400	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
33118-36021	Plate, Stiffener, Rh(Mtm)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
33119-36040	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
33119-36042	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35013-36050	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35103-36020	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35103-36021	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35104-36020	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35104-36021	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35106-36030	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35106-36031	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35111-36010	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35119-36010	Cover, Transmission Housing	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35143-36010	Cover, Transmission Case, Rear	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35144-36010	Gasket, Transmission Case Rear Cover	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35144-60010	Gasket, Transmission Case Rear Cover	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35168-36010	Gasket, Automatic Transmission Oil Pan	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90080-11396	Bolt	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90151-60004	SCREW	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90201-16013	Washer, Plate (For Automatic Transmission Case)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90301-06005	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90341-16010	Plug, Automatic Transmission Case	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90341-18057	Drain Plug (with Magnet)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90447-11026	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
90930-03094	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91611-60616	Bolt(For Transaxle Case Receiver)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91611-61045	Bolt, Hexagon(For Idle Gear Bolt Lock)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91611-61055	Bolt(For Clutch Release Cylinder Setting)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91611-B0616	Bolt(For Transaxle Case Receiver)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91612-61045	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91619-61235	BOLT	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91619-61255	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
91651-60816	BOLT	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([10.1985 - ] (8510- )BB23,24,HB31,32)
