Search › Model › BB24

BB24

Toyota COASTER · 1988 · 5,536 parts · 209 categories
BB24 ×

← Back to categories

5,536 items

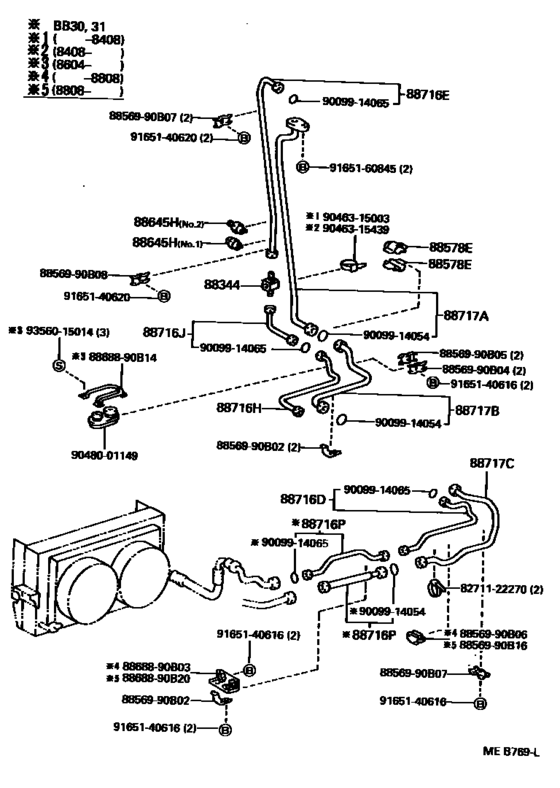

Heating & Air Conditioning - Cooler Piping ([05.1982 - ] (8205- )BB2#,30,31) 60
#OEMPart name
88344 88344-90B00 Glass Sub-Assy, Sight
88578 88578-90B01 Packing, Cooler Pipe, No.1
88645 88645-30250 Switch, Pressure
88645 88645-90B00 Switch, Pressure No.1
88711 88711-90B15 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-90B03 Hose, Cooler Refrigerant Discharge, No.2
88712 88712-90B15 Hose, Cooler Refrigerant Suction, No.1
88714 88721-90B00 Hose, Cooler Refrigerant Liquid, No.1
88715 88715-90B04 Pipe, Cooler Refrigerant Discharge, A
88715 88715-90B11 Pipe, Cooler Refrigerant Discharge, A
88715 88715-90B05 Pipe, Cooler Refrigerant Discharge, E
88716 88716-90B11 Pipe, Cooler Refrigerant Liquid, D
88716 88716-90B09 Pipe, Cooler Refrigerant Liquid, E
88716 88716-90B10 Pipe, Cooler Refrigerant Liquid, H
88716 88716-90B08 Pipe, Cooler Refrigerant Liquid, J
88716 88716-90B03 Pipe, Cooler Refrigerant Liquid, C
88717 88717-90B09 Pipe, Cooler Refrigerant Suction, A
88717 88717-90B04 Pipe, Cooler Refrigerant Suction, B
88717 88717-90B22 Pipe, Cooler Refrigerant Suction, C
88717 88717-90B21 Pipe, Cooler Refrigerant Suction, No.1
88717 88717-90B19 Pipe, Cooler Refrigerant Suction, D
88717 88717-90B12 Pipe, Cooler Refrigerant Suction, E
8856990 88569-90B02 Clamp (for Cooler Relay)
8856990 88569-90B04 Clamp (for Cooler Relay)
8856990 88569-90B05 Clamp (for Cooler Relay)
8856990 88569-90B06 Clamp (for Cooler Relay)
8856990 88569-90B07 Clamp (for Cooler Relay)
8856990 88569-90B08 Clamp (for Cooler Relay)
8856990 88569-90B16 Clamp (for Cooler Relay)
8856990 88569-90B00 Clamp (for Cooler Relay)
8856990 88569-90B01 Clamp (for Cooler Relay)
8856990 88569-90B03 Clamp (for Cooler Relay)
8856990 88569-90B09 Clamp (for Cooler Relay)
8856990 88569-90B10 Clamp (for Cooler Relay)
8856990 88569-90B11 Clamp (for Cooler Relay)
8856990 88569-90B14 Clamp (for Cooler Relay)
8868890 88688-90B03 Bracket, Heater Water Hose
8868890 88688-90B14 Bracket, Cooler Diaphragm
8868890 88688-90B20 Bracket, Cooler Diaphragm
8868890 88688-90B02 Bracket, Cooler Diaphragm
8868890 88688-90B08 Bracket, Cooler Diaphragm
8868890 88688-90B13 Bracket, Cooler Diaphragm
8868890 88688-90B15 Bracket, Cooler Diaphragm
8868890 88688-90B16 Bracket, Cooler Diaphragm
8271122270 82711-22270 Clamp(For Transfer Vacuum Tube)
9009914046 90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose)
9009914054 90099-14054 RING
9009914065 90099-14065 RING
9046315003 90463-15003 New Genuine Part
9046315439 90463-15439 New Genuine Part
9048001149 90480-01149 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140620 91651-40620 BOLT
9165140820 91651-40820 Bolt
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165160845 91651-60845 Bolt(For Rocker Support Set)
9165160845 91651-B0845 Bolt, Flange (For Idler)
9356015014 93560-15014 SCREW
