Search › Model › BB22
BB22

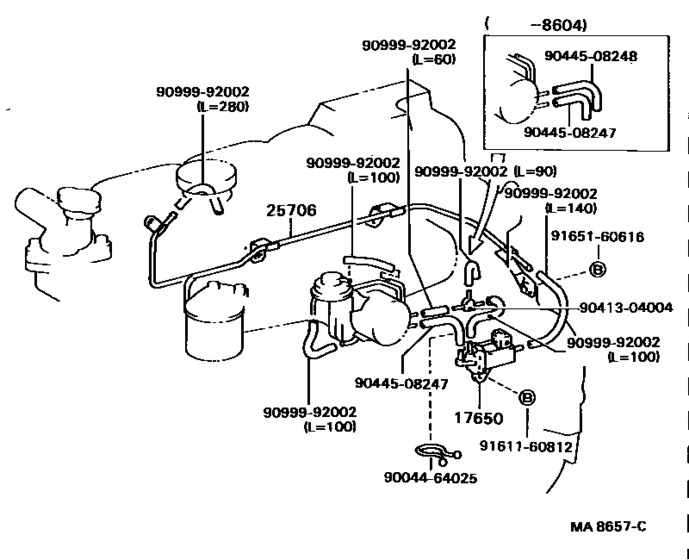

Vacuum Piping ([10.1985 - ] (8510- )13B) 11
| # | OEM | Part name |
|---|---|---|
| 17650 | 90910-12020 | Valve Assy, Vacuum Switching |
| 25706 | 25706-56012 | Pipe Sub-Assy, Vacuum Transmitting, No.1 |
| 25706 | 25706-56013 | Pipe Sub-Assy, Vacuum Transmitting, No.1 |
| 9004464025 | 90044-64025 | Clamp, Wiring Harness |
| 9041304004 | 90413-04004 | Way, 3(For Canister) |
| 9044508247 | 90445-08247 | New Genuine Part |
| 9044508248 | 90445-08248 | New Genuine Part |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| 9161160812 | 91611-60812 | Bolt(For Drive Plate & Torque Converter Setting) |
| 9161160812 | 91611-B0812 | Bolt |
| 9165160616 | 91651-60616 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 25706-56012 | Pipe Sub-Assy, Vacuum Transmitting, No.1 | Vacuum Piping ([10.1985 - ] (8510- )13B) |
| 25706-56013 | Pipe Sub-Assy, Vacuum Transmitting, No.1 | Vacuum Piping ([10.1985 - ] (8510- )13B) |
| 90044-64025 | Clamp, Wiring Harness | Vacuum Piping ([10.1985 - ] (8510- )13B) |
| 90413-04004 | Way, 3(For Canister) | Vacuum Piping ([10.1985 - ] (8510- )13B) |
| 90445-08247 | New Genuine Part | Vacuum Piping ([10.1985 - ] (8510- )13B) |
| 90445-08248 | New Genuine Part | Vacuum Piping ([10.1985 - ] (8510- )13B) |
| 90910-12020 | Valve Assy, Vacuum Switching | Vacuum Piping ([10.1985 - ] (8510- )13B) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([10.1985 - ] (8510- )13B) |
| 91611-60812 | Bolt(For Drive Plate & Torque Converter Setting) | Vacuum Piping ([10.1985 - ] (8510- )13B) |
| 91611-B0812 | Bolt | Vacuum Piping ([10.1985 - ] (8510- )13B) |
| 91651-60616 | BOLT | Vacuum Piping ([10.1985 - ] (8510- )13B) |
