B401

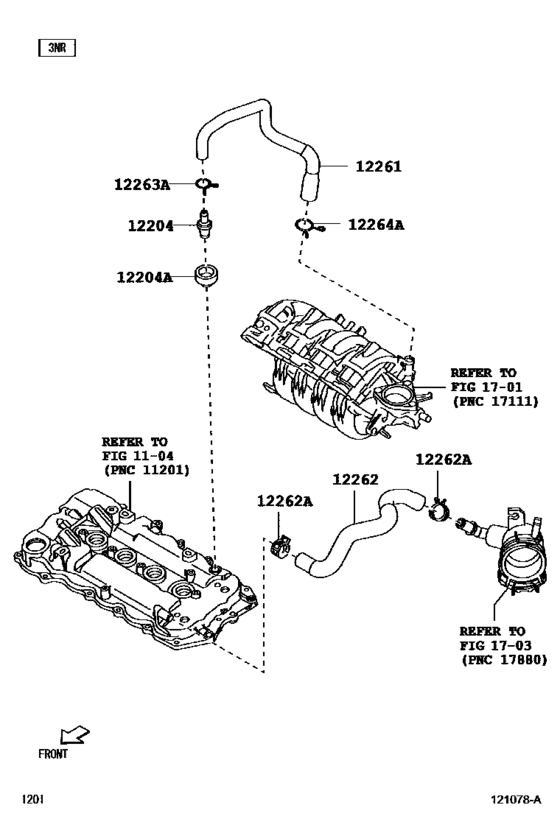

Ventilation Hose ([06.2016 - ] 3NR (1606- )) 7
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-0Y020 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-T0013 | Grommet(For Ventilation System) |
| 12261 | 12261-BZ220 | Hose, Ventilation |
| 12262 | 12262-BZ120 | Hose, Ventilation, No.2 |
| 12262 | 90466-T0020 | Clip(For Water By-Pass Hose No.1) |
| 12263 | 90466-T0061 | Clip Or Clamp(For Ventilation Hose) |
| 12264 | 90466-T0062 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-0Y020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([06.2016 - ] 3NR (1606- )) |
| 12261-BZ220 | Hose, Ventilation | Ventilation Hose ([06.2016 - ] 3NR (1606- )) |
| 12262-BZ120 | Hose, Ventilation, No.2 | Ventilation Hose ([06.2016 - ] 3NR (1606- )) |
| 90466-T0020 | Clip(For Water By-Pass Hose No.1) | Ventilation Hose ([06.2016 - ] 3NR (1606- )) |
| 90466-T0061 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([06.2016 - ] 3NR (1606- )) |
| 90466-T0062 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([06.2016 - ] 3NR (1606- )) |
| 90480-T0013 | Grommet(For Ventilation System) | Ventilation Hose ([06.2016 - ] 3NR (1606- )) |
