Search › Model › B401

B401

Toyota CALYA · 2016 · 1,539 parts · 148 categories

1,539 items

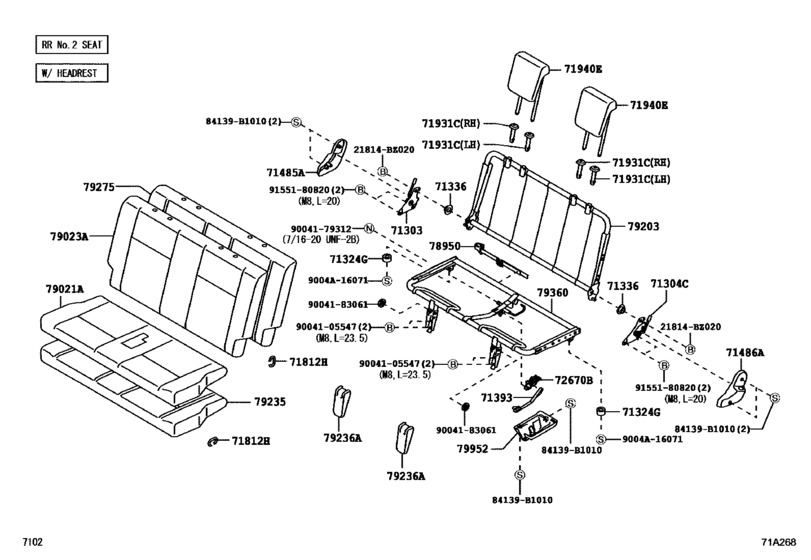

Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- )) 25

#	OEM	Part name
71303	71303-BZ110	Hinge Sub-Assy, Rear Seat Back
71304	71304-BZ060	Hinge Sub-Assy, Rear No.2 Seat, Lh
71324	72179-BZ080	Cushion, Rear No.2 Seat
71336	21552-BZ010	Bush Or Spacer, Rear Seat Back Hinge
71393	71393-BZ030	Band, Rear Seat Cushion
71485	71485-BZ062-B0	Cover, Rear Seat Hinge, No.2 Rh
71486	79273-BZ042-B0	Cover, Rear Seat Hinge, No.2 Lh
71931	71930-BZ050-B0	Support Assy, Rear Seat Headrest
71931	71931-BZ060-B0	Support, Rear Seat Headrest
71940	71970-BZ080-E0	Headrest Assy, No.2 Seat
72670	72670-BZ140	Lock Assy, Rear Seat Cushion, Rh
78950	78980-BZ090	Band Assy, Fold Seat Stopper, No.1
79021	79021-BZ800-E0	Cover Sub-Assy, No.2 Seat Cushion
79023	79023-BZ750-E0	Cover Sub-Assy, No.2 Seat Back
79203	79203-BZ020	Frame Sub-Assy, No.2 Seat Back
79235	79025-BZ030	Pad, No.2 Seat Cushion
79236	79236-BZ100-B0	Cover, No.2 Seat Leg
79275	79027-BZ030	Pad, No.2 Seat Back
79360	79360-BZ080	Spring Assy, No.3 Seat Cushion
79952	79952-BZ110-B0	Cover, No.2 Seat Cushion
84139	84139-B1010	New Genuine Part
9004105547	90041-05547	New Genuine Part
9004179312	90041-79312	New Genuine Part
9004183061	90041-83061	New Genuine Part
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)

OEM	Part name	Category
21552-BZ010	Bush Or Spacer, Rear Seat Back Hinge	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
71303-BZ110	Hinge Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
71304-BZ060	Hinge Sub-Assy, Rear No.2 Seat, Lh	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
71393-BZ030	Band, Rear Seat Cushion	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
71485-BZ062-B0	Cover, Rear Seat Hinge, No.2 Rh	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
71930-BZ050-B0	Support Assy, Rear Seat Headrest	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
71931-BZ060-B0	Support, Rear Seat Headrest	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
71970-BZ080-E0	Headrest Assy, No.2 Seat	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
72179-BZ080	Cushion, Rear No.2 Seat	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
72670-BZ140	Lock Assy, Rear Seat Cushion, Rh	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
78980-BZ090	Band Assy, Fold Seat Stopper, No.1	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
79021-BZ800-E0	Cover Sub-Assy, No.2 Seat Cushion	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
79023-BZ750-E0	Cover Sub-Assy, No.2 Seat Back	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
79025-BZ030	Pad, No.2 Seat Cushion	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
79027-BZ030	Pad, No.2 Seat Back	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
79203-BZ020	Frame Sub-Assy, No.2 Seat Back	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
79236-BZ100-B0	Cover, No.2 Seat Leg	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
79273-BZ042-B0	Cover, Rear Seat Hinge, No.2 Lh	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
79360-BZ080	Spring Assy, No.3 Seat Cushion	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
79952-BZ110-B0	Cover, No.2 Seat Cushion	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
84139-B1010	New Genuine Part	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
90041-05547	New Genuine Part	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
90041-79312	New Genuine Part	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
90041-83061	New Genuine Part	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Rear Seat & Seat Track ([06.2016 - ] RR NO.2 SEAT (1606- ))
