Search › Model › B401

B401

Toyota CALYA · 2016 · 1,539 parts · 148 categories

← Back to categories

1,539 items

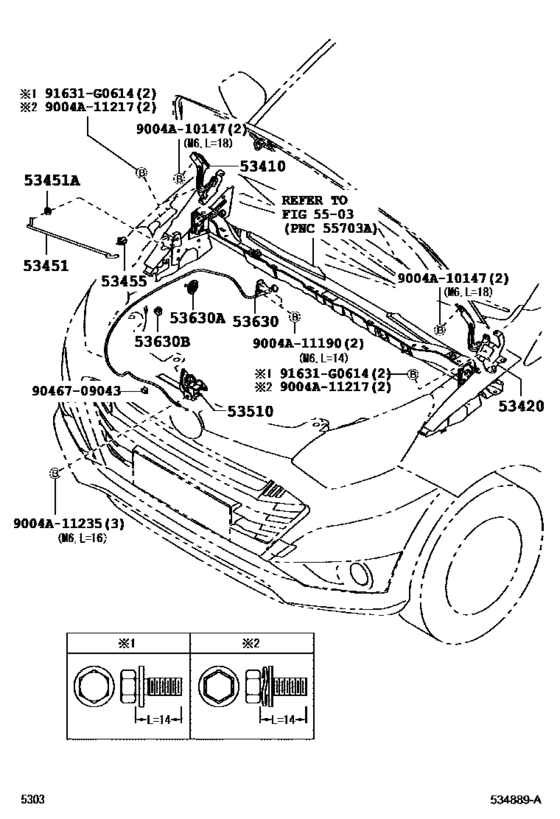

Hood Lock & Hinge ([06.2016 - ] (1606- )) 11

#	OEM	Part name
9004	91661-60616	BOLT
53410	53401-BZ080	Hinge Assy, Hood, Rh
53420	53402-BZ050	Hinge Assy, Hood, Lh
53451	53451-BZ170	Rod, Hood Support
53455	53455-BZ100	Clamp, Hood Support Rod
53510	53510-BZ270	Lock Assy, Hood
53630	53630-BZ250	Cable Assy, Hood Lock Control
53630	85373-BZ090	Grommet(For Hood Lock Control Cable)
53630	82711-BZ100	Clamp, Rear Washer Hose
91631	91631-G0614	BOT WWASHER
9046709043	90467-09043	Clamp, Hood Lock Control Cable

OEM	Part name	Category
53401-BZ080	Hinge Assy, Hood, Rh	Hood Lock & Hinge ([06.2016 - ] (1606- ))
53402-BZ050	Hinge Assy, Hood, Lh	Hood Lock & Hinge ([06.2016 - ] (1606- ))
53451-BZ170	Rod, Hood Support	Hood Lock & Hinge ([06.2016 - ] (1606- ))
53455-BZ100	Clamp, Hood Support Rod	Hood Lock & Hinge ([06.2016 - ] (1606- ))
53510-BZ270	Lock Assy, Hood	Hood Lock & Hinge ([06.2016 - ] (1606- ))
53630-BZ250	Cable Assy, Hood Lock Control	Hood Lock & Hinge ([06.2016 - ] (1606- ))
82711-BZ100	Clamp, Rear Washer Hose	Hood Lock & Hinge ([06.2016 - ] (1606- ))
85373-BZ090	Grommet(For Hood Lock Control Cable)	Hood Lock & Hinge ([06.2016 - ] (1606- ))
90467-09043	Clamp, Hood Lock Control Cable	Hood Lock & Hinge ([06.2016 - ] (1606- ))
91631-G0614	BOT WWASHER	Hood Lock & Hinge ([06.2016 - ] (1606- ))
91661-60616	BOLT	Hood Lock & Hinge ([06.2016 - ] (1606- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 148
Collected: 2026-08-02
