B401

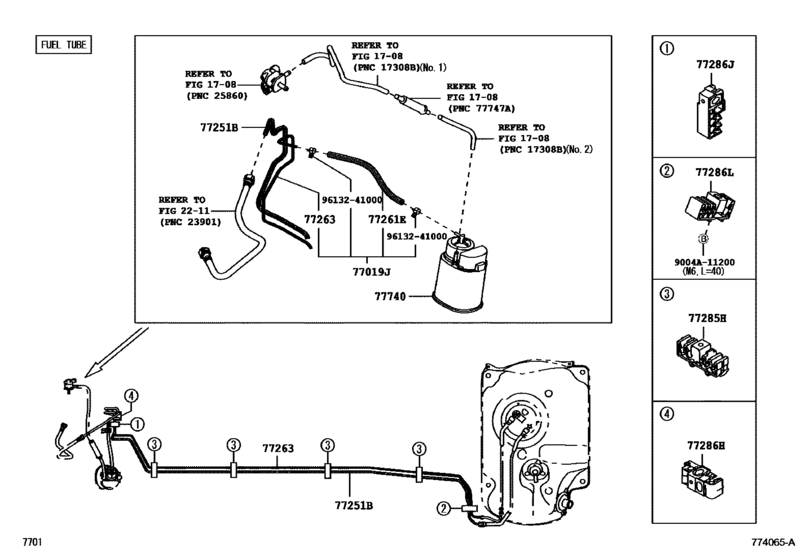

Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) 10
| # | OEM | Part name |
|---|---|---|
| 77019 | 77019-BZ170 | Tube Sub-Assy, Fuel Tank To Canister |
| 77251 | 77251-BZ270 | Tube, Fuel Main |
| 77261 | 95333-04095 | Hose, Fuel |
| 77263 | 77263-BZ190 | Tube, Fuel Tank To Canister, No.3 |
| 77285 | 90044-64657 | Clamp, Brake Tube, No.7 |
| 77286 | 90044-64878 | Clamp, Fuel Tube, No.3 |
| 77286 | 47371-B2050 | Clamp, Fuel Tube, No.4 |
| 77286 | 90044-64787 | Clamp, Brake Tube, No.9 |
| 77740 | 77740-BZ070 | Canister Assy, Charcoal |
| 9613241000 | 96132-41000 | Clip, No.1(For Idle-Up Hose) |
| OEM | Part name | Category |
|---|---|---|
| 47371-B2050 | Clamp, Fuel Tube, No.4 | Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) |
| 77019-BZ170 | Tube Sub-Assy, Fuel Tank To Canister | Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) |
| 77251-BZ270 | Tube, Fuel Main | Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) |
| 77263-BZ190 | Tube, Fuel Tank To Canister, No.3 | Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) |
| 77740-BZ070 | Canister Assy, Charcoal | Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) |
| 90044-64657 | Clamp, Brake Tube, No.7 | Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) |
| 90044-64787 | Clamp, Brake Tube, No.9 | Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) |
| 90044-64878 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) |
| 95333-04095 | Hose, Fuel | Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) |
| 96132-41000 | Clip, No.1(For Idle-Up Hose) | Fuel Tank & Tube ([06.2016 - ] FUEL TUBE (1606- )) |
