Search › Model › B401
B401

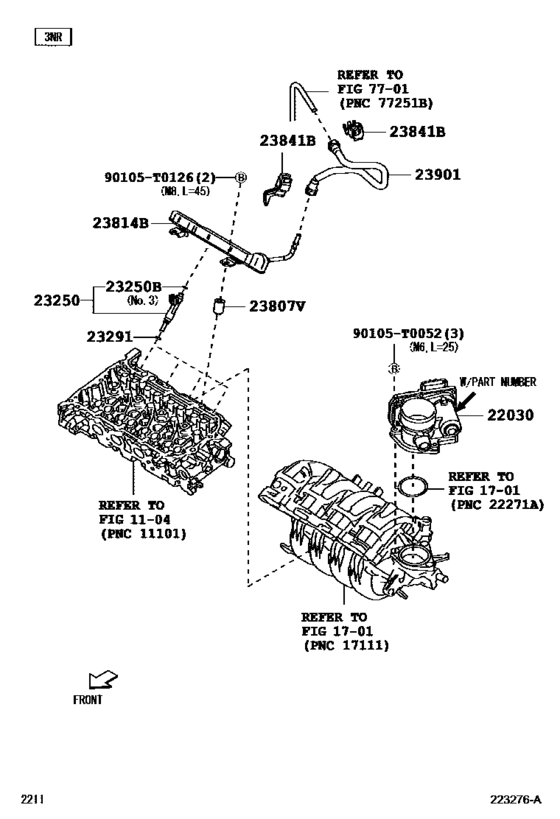

Fuel Injection System ([06.2016 - ] 3NR (1606- )) 10
| # | OEM | Part name |
|---|---|---|
| 22030 | 22030-BZ030 | Body Assy, Throttle W/motor |
| 23250 | 23209-09340 | Injector Assy, Fuel |
| 23250 | 90301-07042 | Ring, O(For Fuel Injector) |
| 23291 | 23291-0Y020 | Insulator, Injector Vibration |
| 23807 | 23891-47040 | Spacer, No.1(For Delivery Pipe) |
| 23814 | 23814-0Y010 | Pipe, Fuel Delivery |
| 23841 | 23841-BZ020 | Clamp, Fuel Pipe, No.1(For Efi) |
| 23901 | 23901-BZ070 | Tube Sub-Assy, Fuel |
| 90105 | 90105-T0052 | New Genuine Part |
| 90105 | 90105-T0126 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 22030-BZ030 | Body Assy, Throttle W/motor | Fuel Injection System ([06.2016 - ] 3NR (1606- )) |
| 23209-09340 | Injector Assy, Fuel | Fuel Injection System ([06.2016 - ] 3NR (1606- )) |
| 23291-0Y020 | Insulator, Injector Vibration | Fuel Injection System ([06.2016 - ] 3NR (1606- )) |
| 23814-0Y010 | Pipe, Fuel Delivery | Fuel Injection System ([06.2016 - ] 3NR (1606- )) |
| 23841-BZ020 | Clamp, Fuel Pipe, No.1(For Efi) | Fuel Injection System ([06.2016 - ] 3NR (1606- )) |
| 23891-47040 | Spacer, No.1(For Delivery Pipe) | Fuel Injection System ([06.2016 - ] 3NR (1606- )) |
| 23901-BZ070 | Tube Sub-Assy, Fuel | Fuel Injection System ([06.2016 - ] 3NR (1606- )) |
| 90105-T0052 | New Genuine Part | Fuel Injection System ([06.2016 - ] 3NR (1606- )) |
| 90105-T0126 | New Genuine Part | Fuel Injection System ([06.2016 - ] 3NR (1606- )) |
| 90301-07042 | Ring, O(For Fuel Injector) | Fuel Injection System ([06.2016 - ] 3NR (1606- )) |
