Search › Model › B401

B401

Toyota CALYA · 2016 · 1,539 parts · 148 categories

1,539 items

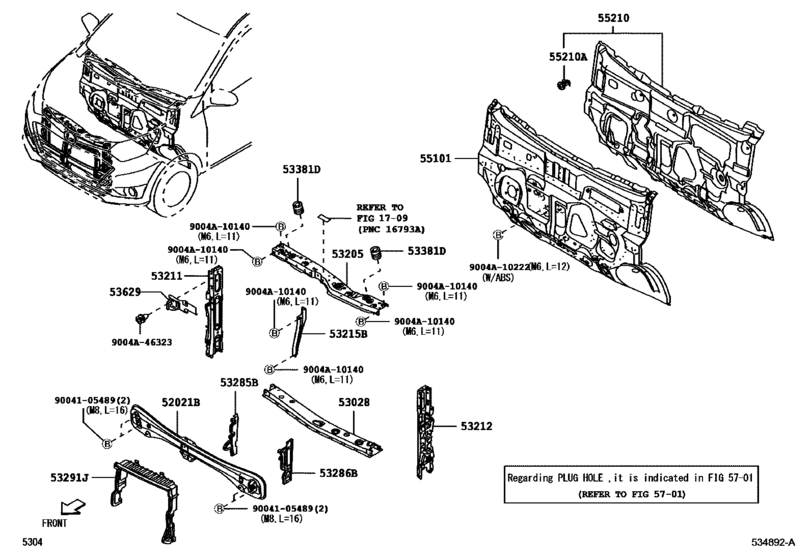

Front Fender Apron & Dash Panel ([06.2016 - ] (1606- )) 23

#	OEM	Part name
52021	52131-BZ120	Reinforcement Sub-Assy, Front Bumper
53028	53028-BZ160	Support Sub-Assy, Radiator, Lower
53205	53205-BZ170	Support Sub-Assy, Radiator, Upper
53211	53211-BZ210	Support, Radiator, Rh
53215	53215-BZ180	Support, Hood Lock
53285	53037-BZ020	Seal, Radiator Side Air, No.1
53286	53038-BZ010	Seal, Radiator Side Air, No.2
53291	53039-BZ020	Seal, Radiator Support
53381	53381-BZ010	Clip(For Hood To Radiator Support Seal)
53629	53629-BZ090	Cover, Hood Lock Control Cable
53701	53701-BZ530	Apron Sub-Assy, Front Fender, Rh
53702	53702-BZ650	Apron Sub-Assy, Front Fender, Lh
55101	55101-BZL00	Panel Sub-Assy, Dash
55168	55168-BZ190	Bracket, Front Fender Mounting, Rh
55169	55169-BZ160	Bracket, Front Fender Mounting, Lh
55210	55210-BZ490	Insulator Assy, Dash Panel
55210	90467-11122	Clip
55713	53803-BZ090	Panel, Cowl Top Side, Rh
55714	55714-BZ150	Panel, Cowl Top Side, Lh
57105	57105-BZ170	Plate Sub-Assy, Front Side Member, Rh
57106	57106-BZ160	Plate Sub-Assy, Front Side Member, Lh
57233	57233-BZ040	Retainer, Engine Front Support, Rh
9004105489	90041-05489	New Genuine Part

OEM	Part name	Category
52131-BZ120	Reinforcement Sub-Assy, Front Bumper	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53028-BZ160	Support Sub-Assy, Radiator, Lower	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53037-BZ020	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53038-BZ010	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53039-BZ020	Seal, Radiator Support	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53205-BZ170	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53211-BZ210	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53215-BZ180	Support, Hood Lock	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53381-BZ010	Clip(For Hood To Radiator Support Seal)	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53629-BZ090	Cover, Hood Lock Control Cable	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53701-BZ530	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53702-BZ650	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
53803-BZ090	Panel, Cowl Top Side, Rh	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
55101-BZL00	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
55168-BZ190	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
55169-BZ160	Bracket, Front Fender Mounting, Lh	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
55210-BZ490	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
55714-BZ150	Panel, Cowl Top Side, Lh	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
57105-BZ170	Plate Sub-Assy, Front Side Member, Rh	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
57106-BZ160	Plate Sub-Assy, Front Side Member, Lh	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
57233-BZ040	Retainer, Engine Front Support, Rh	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
90041-05489	New Genuine Part	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
90467-11122	Clip	Front Fender Apron & Dash Panel ([06.2016 - ] (1606- ))
