B401

Toyota CALYA · 2016 · 1,539 parts · 148 categories

1,539 items

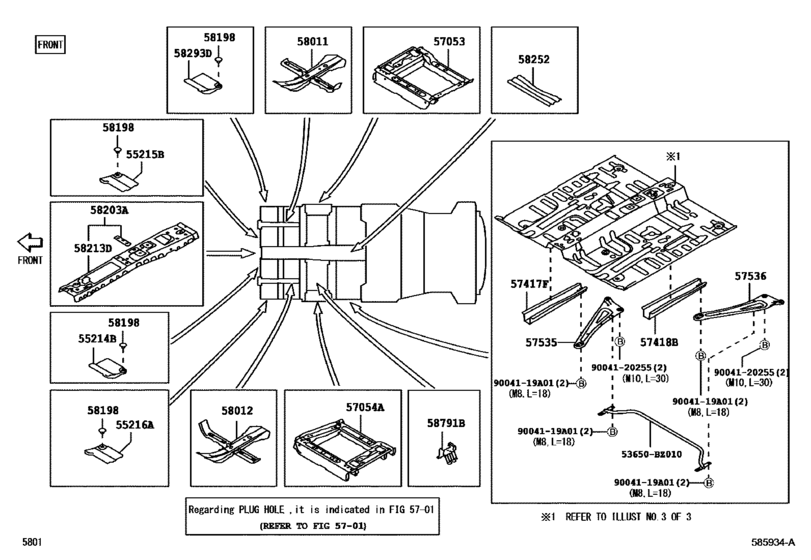

Floor Pan & Lower Back Panel ([06.2016 - ] (1606- )) 29

#	OEM	Part name
47419	47419-B6010	Plug, Hole(for Front Brake)
55214	55214-BZ060	Pad, Dash Panel Insulator, No.2
55215	58572-BZ020	Pad, Dash Panel Insulator, No.3
57053	57053-BZ040	Reinforcement Sub-Assy, Front Floor Cross Member, Rh
57054	57054-BZ060	Reinforcement Sub-Assy, Front Floor Cross Member, Lh
57417	57417-BZ070	Reinforcement, Front Floor Under
57535	57535-BZ020	Brace, Front Floor, Rh
57536	57536-BZ020	Brace, Front Floor, Lh
57615	52185-BZ080	Bracket, Rear Bumper Side Mountin, Rh
58011	58025-BZ030	Panel Sub-Assy, Front Floor Side, Rh
58012	58026-BZ030	Panel Sub-Assy, Front Floor Side, Lh
58052	58201-BZ030	Pan Sub-Assy, Center Floor
58111	58111-BZ300	Pan, Front Floor
58172	46521-BZ030	Plate, Parking Brake Mounting
58181	58182-BZ050	Retainer, Seat Rail, Front
58198	90044-67397	Clip
58203	58203-BZ070	Reinforcement Sub-Assy, Center Floor Panel, Rh
58211	58211-BZ070	Pan, Center Floor
58213	58213-BZ140	Reinforcement, Center Floor Panel
58252	58252-BZ010	Brace, Floor Panel, Rear
58293	58571-BZ020	Pad, Dash Panel Insulator, No.3
58301	58301-BZ430	Panel Sub-Assy, Rear Floor
58308	58308-BZ260	Panel Sub-Assy, Body Lower Back, Inner
58325	58325-BZ070	Cover, Rear Floor Service Hole
58791	58791-BZ050	Carrier, Jack
62671	62671-BZ020	Cover, Lower Back Panel
64777	47131-BZ050	Cushion
9004119	90041-19A01	Bolt, Instrument Panel
9004120255	90041-20255	Bolt, Brake Pedal Stop, No.1

OEM	Part name	Category
46521-BZ030	Plate, Parking Brake Mounting	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
47131-BZ050	Cushion	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
47419-B6010	Plug, Hole(for Front Brake)	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
52185-BZ080	Bracket, Rear Bumper Side Mountin, Rh	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
55214-BZ060	Pad, Dash Panel Insulator, No.2	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
57053-BZ040	Reinforcement Sub-Assy, Front Floor Cross Member, Rh	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
57054-BZ060	Reinforcement Sub-Assy, Front Floor Cross Member, Lh	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
57417-BZ070	Reinforcement, Front Floor Under	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
57535-BZ020	Brace, Front Floor, Rh	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
57536-BZ020	Brace, Front Floor, Lh	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58025-BZ030	Panel Sub-Assy, Front Floor Side, Rh	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58026-BZ030	Panel Sub-Assy, Front Floor Side, Lh	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58111-BZ300	Pan, Front Floor	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58182-BZ050	Retainer, Seat Rail, Front	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58201-BZ030	Pan Sub-Assy, Center Floor	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58203-BZ070	Reinforcement Sub-Assy, Center Floor Panel, Rh	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58211-BZ070	Pan, Center Floor	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58213-BZ140	Reinforcement, Center Floor Panel	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58252-BZ010	Brace, Floor Panel, Rear	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58301-BZ430	Panel Sub-Assy, Rear Floor	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58308-BZ260	Panel Sub-Assy, Body Lower Back, Inner	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58325-BZ070	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58571-BZ020	Pad, Dash Panel Insulator, No.3	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58572-BZ020	Pad, Dash Panel Insulator, No.3	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
58791-BZ050	Carrier, Jack	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
62671-BZ020	Cover, Lower Back Panel	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
90041-19A01	Bolt, Instrument Panel	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
90041-20255	Bolt, Brake Pedal Stop, No.1	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
90044-67397	Clip	Floor Pan & Lower Back Panel ([06.2016 - ] (1606- ))
