B16U

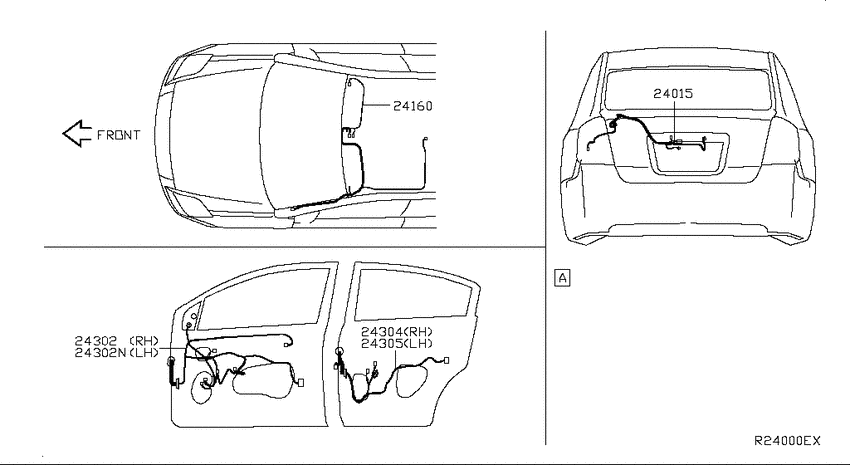

Wiring (2008-09-01 ~ 2009-08-01; ROOF & DOOR; 4S.MR20DE) 6
| # | OEM | Part name |
|---|---|---|
| 24015 | 24015-ZJ60A | Harness-Tail |
| 24160 | 24060-ET40A | Harness assy-room lamp |
| 24302 | 24124-ZJ60A | Harness-Front Door, Rh |
| 24302 | 24125-ZJ60A | Harness Assy-Door, Front |
| 24304 | 24126-ZJ60A | Harness-Rear Door, Rh |
| 24305 | 24127-ZJ60A | Harness-Rear Door, Lh |
| OEM | Part name | Category |
|---|---|---|
| 24015-ZJ60A | Harness-Tail | Wiring (2008-09-01 ~ 2009-08-01; ROOF & DOOR; 4S.MR20DE) |
| 24060-ET40A | Harness assy-room lamp | Wiring (2008-09-01 ~ 2009-08-01; ROOF & DOOR; 4S.MR20DE) |
| 24124-ZJ60A | Harness-Front Door, Rh | Wiring (2008-09-01 ~ 2009-08-01; ROOF & DOOR; 4S.MR20DE) |
| 24125-ZJ60A | Harness Assy-Door, Front | Wiring (2008-09-01 ~ 2009-08-01; ROOF & DOOR; 4S.MR20DE) |
| 24126-ZJ60A | Harness-Rear Door, Rh | Wiring (2008-09-01 ~ 2009-08-01; ROOF & DOOR; 4S.MR20DE) |
| 24127-ZJ60A | Harness-Rear Door, Lh | Wiring (2008-09-01 ~ 2009-08-01; ROOF & DOOR; 4S.MR20DE) |
