Search › Model › B16U
B16U

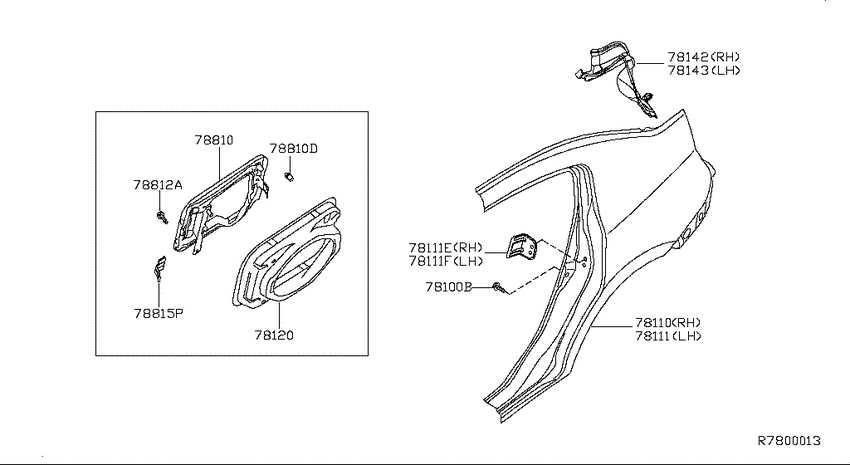

Rear fender & fitting (2008-09-01 ~ 2009-08-01; 4S) 6
| # | OEM | Part name |
|---|---|---|
| 78111 | 76690-ET030 | Retainer-Tapping, Striker Rh |
| 78111 | 76691-ET030 | Retainer-Tapping, Striker Lh |
| 78120 | 78120-ET030 | Base Assy-Fuel Filler |
| 78810 | 78830-ET030 | Lid Assy-Fuel Filler |
| 78812 | 01141-N5061 | Screw |
| 78815 | 78836-ET00A | Spring-Fuel Filler Lid |
| OEM | Part name | Category |
|---|---|---|
| 01141-N5061 | Screw | Rear fender & fitting (2008-09-01 ~ 2009-08-01; 4S) |
| 76690-ET030 | Retainer-Tapping, Striker Rh | Rear fender & fitting (2008-09-01 ~ 2009-08-01; 4S) |
| 76691-ET030 | Retainer-Tapping, Striker Lh | Rear fender & fitting (2008-09-01 ~ 2009-08-01; 4S) |
| 78120-ET030 | Base Assy-Fuel Filler | Rear fender & fitting (2008-09-01 ~ 2009-08-01; 4S) |
| 78830-ET030 | Lid Assy-Fuel Filler | Rear fender & fitting (2008-09-01 ~ 2009-08-01; 4S) |
| 78836-ET00A | Spring-Fuel Filler Lid | Rear fender & fitting (2008-09-01 ~ 2009-08-01; 4S) |
