Search › Model › B16U
B16U

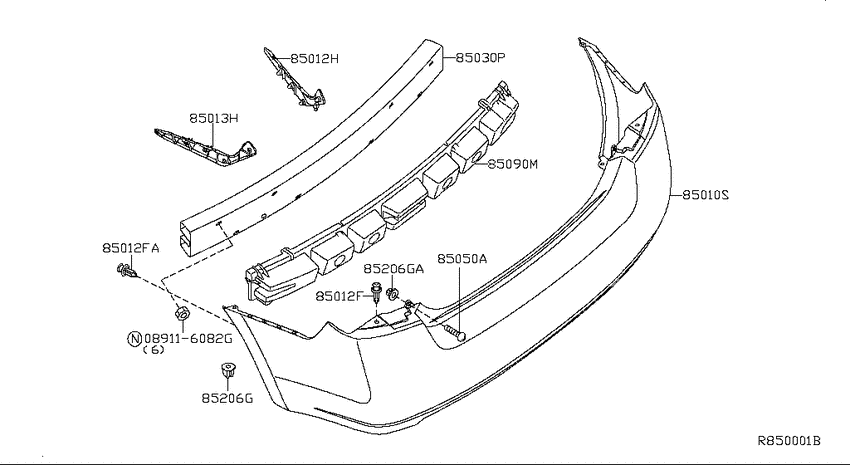

Rear bumper (2008-09-01 ~ 2009-08-01; 4S) 7
| # | OEM | Part name |
|---|---|---|
| 85010 | 85022-ET30A | Fascia Kit-Rear Bumper |
| 85012 | 85220-ET00A | Bracket-Rear Bumper Side, Rh |
| 85013 | 85221-ET00A | Bracket-Rear Bumper Side, Lh |
| 85030 | 85030-ZE80A | Armature Assy-Rear Bumper |
| 85050 | 63849-4N00A | Screw |
| 85090 | 85090-ZE80A | Absorber Assy-Energy, Rear Bumper |
| 89116082 | 08911-6082G | NUTHEX |
| OEM | Part name | Category |
|---|---|---|
| 08911-6082G | NUTHEX | Rear bumper (2008-09-01 ~ 2009-08-01; 4S) |
| 63849-4N00A | Screw | Rear bumper (2008-09-01 ~ 2009-08-01; 4S) |
| 85022-ET30A | Fascia Kit-Rear Bumper | Rear bumper (2008-09-01 ~ 2009-08-01; 4S) |
| 85030-ZE80A | Armature Assy-Rear Bumper | Rear bumper (2008-09-01 ~ 2009-08-01; 4S) |
| 85090-ZE80A | Absorber Assy-Energy, Rear Bumper | Rear bumper (2008-09-01 ~ 2009-08-01; 4S) |
| 85220-ET00A | Bracket-Rear Bumper Side, Rh | Rear bumper (2008-09-01 ~ 2009-08-01; 4S) |
| 85221-ET00A | Bracket-Rear Bumper Side, Lh | Rear bumper (2008-09-01 ~ 2009-08-01; 4S) |
