B16U

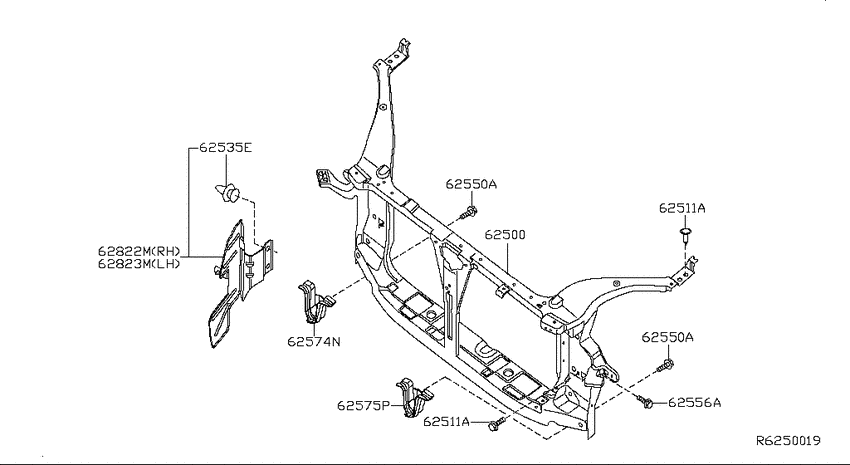

Front apron & radiator core support (2008-09-01 ~ 2009-08-01; 4S) 5
| # | OEM | Part name |
|---|---|---|
| 62500 | 62500-ET000 | Support Assy-Radiator Core |
| 62535 | 01553-0164U | Clip |
| 62556 | 01466-0002U | Screw |
| 62822 | 62810-ET80A | Air Guide-Front, Rh |
| 62823 | 62811-ET80A | Air Guide-Front, Lh |
| OEM | Part name | Category |
|---|---|---|
| 01466-0002U | Screw | Front apron & radiator core support (2008-09-01 ~ 2009-08-01; 4S) |
| 01553-0164U | Clip | Front apron & radiator core support (2008-09-01 ~ 2009-08-01; 4S) |
| 62500-ET000 | Support Assy-Radiator Core | Front apron & radiator core support (2008-09-01 ~ 2009-08-01; 4S) |
| 62810-ET80A | Air Guide-Front, Rh | Front apron & radiator core support (2008-09-01 ~ 2009-08-01; 4S) |
| 62811-ET80A | Air Guide-Front, Lh | Front apron & radiator core support (2008-09-01 ~ 2009-08-01; 4S) |
