Search › Model › B16U
B16U

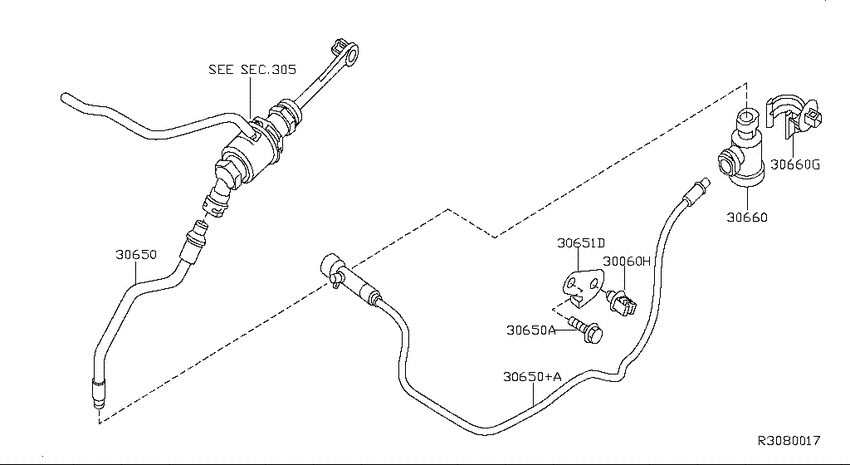

Clutch piping (2008-09-01 ~ 2009-08-01; SE-R; MR20DE +QR25DE) 4
| # | OEM | Part name |
|---|---|---|
| 30060 | 17574-00QAA | Clip |
| 30650 | 30850-ET000 | Tube Assy-Clutch |
| 30650 | 30851-ET000 | Tube Assy-Clutch |
| 30660 | 30665-ET000 | Bracket-Clutch Damper |
| OEM | Part name | Category |
|---|---|---|
| 17574-00QAA | Clip | Clutch piping (2008-09-01 ~ 2009-08-01; SE-R; MR20DE +QR25DE) |
| 30665-ET000 | Bracket-Clutch Damper | Clutch piping (2008-09-01 ~ 2009-08-01; SE-R; MR20DE +QR25DE) |
| 30850-ET000 | Tube Assy-Clutch | Clutch piping (2008-09-01 ~ 2009-08-01; SE-R; MR20DE +QR25DE) |
| 30851-ET000 | Tube Assy-Clutch | Clutch piping (2008-09-01 ~ 2009-08-01; SE-R; MR20DE +QR25DE) |
