| 01125-N8081 |
Bolt |

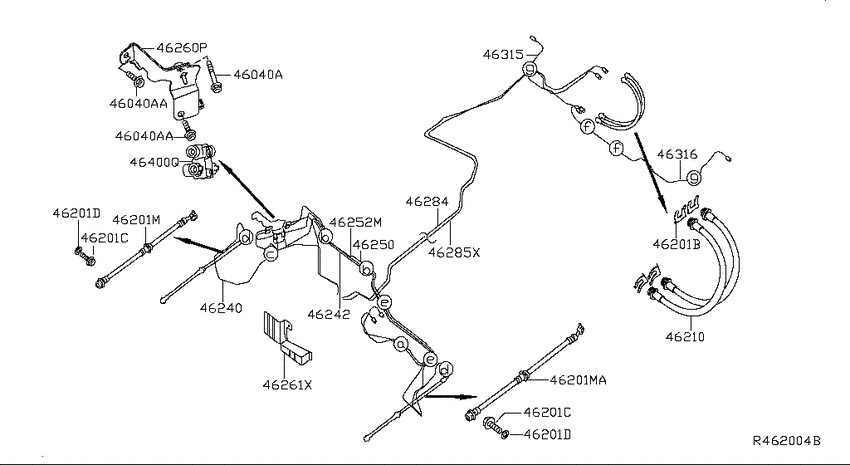

Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46210-ET010 |
Hose Assy-Brake, Rear |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46210-ET82A |
Hose Assy-Brake, Front |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46210-ET83A |
Hose Assy-Brake, Front |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46240-ET000 |
Tube Assy-Brake, Front Rh |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46240-ET010 |
Tube Assy-Brake, Front Rh |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46242-ET000 |
Tube Assy-Brake, Front Lh |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46242-ET010 |
Tube Assy-Brake, Front Lh |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46250-ET000 |
Tube Assy-Brake, Master Cylinder To Front |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46250-ET010 |
Tube Assy-Brake, Master Cylinder To Front |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46252-ET000 |
Tube Assy-Brake, Master Cylinder To Front |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46252-ET010 |
Tube Assy-Brake, Master Cylinder To Front |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46260-ET000 |
Bracket-Brake Tube |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46261-ET000 |
Bracket-Brake Tube |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46284-ET000 |
Tube Assy-Brake, Rear |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46284-ET100 |
Tube Assy-Brake, Rear |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46285-ET000 |
Tube Assy-Brake, Rear |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46285-ET100 |
Tube Assy-Brake, Rear |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46315-ET000 |
Tube Assy-Brake Rear, Rh |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46316-ET000 |
Tube Assy-Brake Rear, Lh |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
| 46400-ET000 |
Valve Assy-Dual Proportioning |
Brake piping & control (2008-09-01 ~ 2009-08-01; PIPING-NON ABS; 4S.MR20DE) |
