B15U

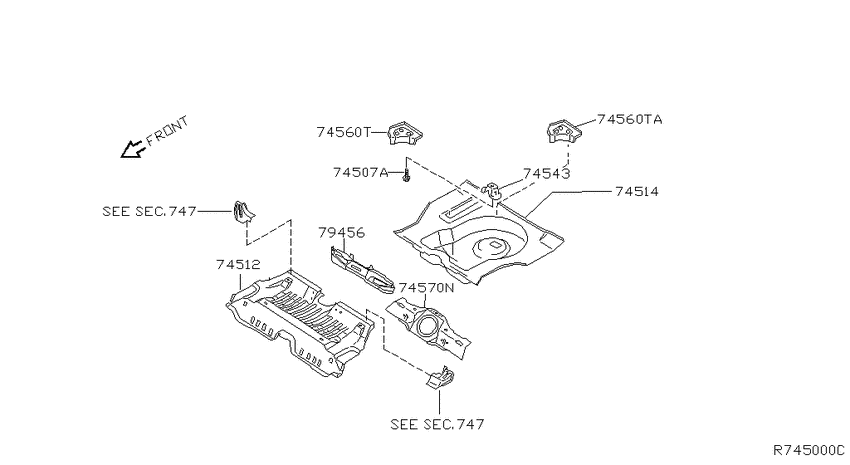

Floor panel (rear) (2003-04-01 ~ ; 4S) 8
| # | OEM | Part name |
|---|---|---|
| 74507 | 01136-0003U | Bolt |
| 74512 | 74512-4Z330 | Floor-rear,front |
| 74514 | 74514-4Z030 | Floor-rear,rear |
| 74543 | 74588-5M030 | Bracket-Spare Tire Clamp |
| 74560 | 74560-4Z730 | Bracket-muffler mounting |
| 74560 | 74560-5M130 | Bracket-muffler mounting |
| 74570 | 74574-5M230 | Reinforce-Anchor Belt, Rear Floor |
| 79456 | 79452-5M000 | Brace assy-rear seat back |
| OEM | Part name | Category |
|---|---|---|
| 01136-0003U | Bolt | Floor panel (rear) (2003-04-01 ~ ; 4S) |
| 74512-4Z330 | Floor-rear,front | Floor panel (rear) (2003-04-01 ~ ; 4S) |
| 74514-4Z030 | Floor-rear,rear | Floor panel (rear) (2003-04-01 ~ ; 4S) |
| 74560-4Z730 | Bracket-muffler mounting | Floor panel (rear) (2003-04-01 ~ ; 4S) |
| 74560-5M130 | Bracket-muffler mounting | Floor panel (rear) (2003-04-01 ~ ; 4S) |
| 74574-5M230 | Reinforce-Anchor Belt, Rear Floor | Floor panel (rear) (2003-04-01 ~ ; 4S) |
| 74588-5M030 | Bracket-Spare Tire Clamp | Floor panel (rear) (2003-04-01 ~ ; 4S) |
| 79452-5M000 | Brace assy-rear seat back | Floor panel (rear) (2003-04-01 ~ ; 4S) |
