Search › Model › B14X
B14X

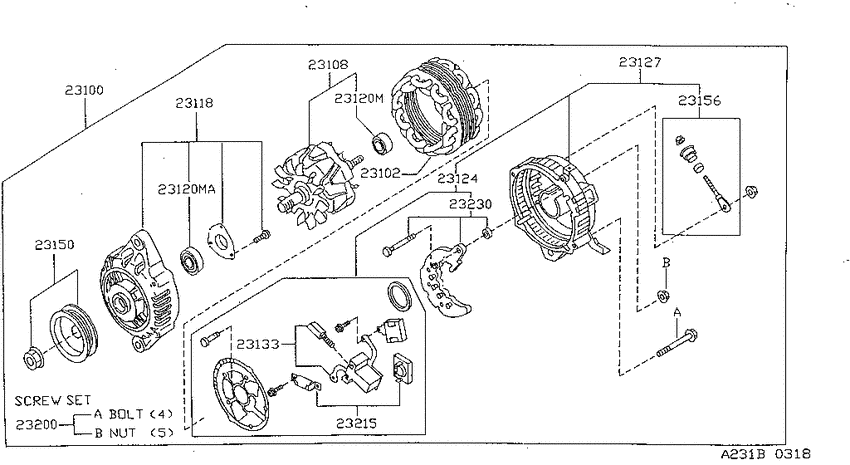

Alternator (1998-07-01 ~ ; SR20DE) 13
| # | OEM | Part name |
|---|---|---|
| 23100 | 23100-0M810 | Alternator Assy |
| 23102 | 23102-85L10 | Stator Assy |
| 23108 | 23108-0P610 | Rotor Assy |
| 23118 | 23118-64J15 | Cover Assy-Front |
| 23120 | 23120-22J20 | Bearing-Ball |
| 23120 | 23120-30R10 | Bearing-Ball |
| 23124 | 23124-2J011 | Rectifier Assy |
| 23127 | 23127-0M811 | Cover Assy-Rear |
| 23127 | 23131-20P10 | Bolt-Through |
| 23150 | 23153-70T12 | Plate-Terminal |
| 23200 | 23200-20P10 | Screw Set |
| 23215 | 23215-0M011 | Regulator Assy-Ic |
| 23230 | 23230-0M801 | Diode Assy |
| OEM | Part name | Category |
|---|---|---|
| 23100-0M810 | Alternator Assy | Alternator (1998-07-01 ~ ; SR20DE) |
| 23102-85L10 | Stator Assy | Alternator (1998-07-01 ~ ; SR20DE) |
| 23108-0P610 | Rotor Assy | Alternator (1998-07-01 ~ ; SR20DE) |
| 23118-64J15 | Cover Assy-Front | Alternator (1998-07-01 ~ ; SR20DE) |
| 23120-22J20 | Bearing-Ball | Alternator (1998-07-01 ~ ; SR20DE) |
| 23120-30R10 | Bearing-Ball | Alternator (1998-07-01 ~ ; SR20DE) |
| 23124-2J011 | Rectifier Assy | Alternator (1998-07-01 ~ ; SR20DE) |
| 23127-0M811 | Cover Assy-Rear | Alternator (1998-07-01 ~ ; SR20DE) |
| 23131-20P10 | Bolt-Through | Alternator (1998-07-01 ~ ; SR20DE) |
| 23153-70T12 | Plate-Terminal | Alternator (1998-07-01 ~ ; SR20DE) |
| 23200-20P10 | Screw Set | Alternator (1998-07-01 ~ ; SR20DE) |
| 23215-0M011 | Regulator Assy-Ic | Alternator (1998-07-01 ~ ; SR20DE) |
| 23230-0M801 | Diode Assy | Alternator (1998-07-01 ~ ; SR20DE) |
