Search › Model › B13
B13

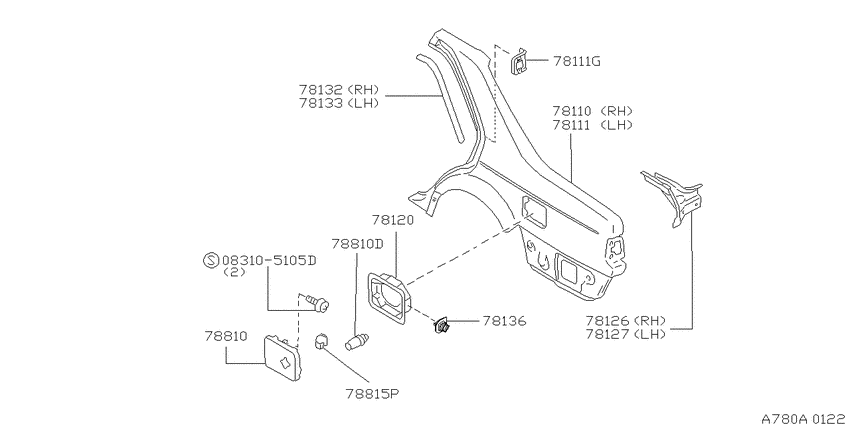

Rear fender & fitting (1992-01-01 ~ ; 4S) 11
| # | OEM | Part name |
|---|---|---|
| 78110 | 78112-50Y35 | Fender-Rear, Rh |
| 78111 | 78113-50Y30 | Fender-Rear, Lh |
| 78111 | 76690-50Y00 | Retainer-Tapping, Striker |
| 78120 | 78120-50Y00 | Base-Filler Lid |
| 78126 | 78134-50Y00 | Corner-Rear Fender, Rh |
| 78127 | 78135-50Y00 | Corner-Rear Fender, Lh |
| 78132 | 78132-50Y00 | Drip-Rear Fender, Rh |
| 78133 | 78133-50Y00 | Drip-Rear Fender, Lh |
| 78810 | 78830-50Y00 | Lid-Gas Filler |
| 78810 | 01658-00371 | BUMPER-LID |
| 83105105 | 08310-5105D | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 01658-00371 | BUMPER-LID | Rear fender & fitting (1992-01-01 ~ ; 4S) |
| 08310-5105D | スクリユ-,マシン | Rear fender & fitting (1992-01-01 ~ ; 4S) |
| 76690-50Y00 | Retainer-Tapping, Striker | Rear fender & fitting (1992-01-01 ~ ; 4S) |
| 78112-50Y35 | Fender-Rear, Rh | Rear fender & fitting (1992-01-01 ~ ; 4S) |
| 78113-50Y30 | Fender-Rear, Lh | Rear fender & fitting (1992-01-01 ~ ; 4S) |
| 78120-50Y00 | Base-Filler Lid | Rear fender & fitting (1992-01-01 ~ ; 4S) |
| 78132-50Y00 | Drip-Rear Fender, Rh | Rear fender & fitting (1992-01-01 ~ ; 4S) |
| 78133-50Y00 | Drip-Rear Fender, Lh | Rear fender & fitting (1992-01-01 ~ ; 4S) |
| 78134-50Y00 | Corner-Rear Fender, Rh | Rear fender & fitting (1992-01-01 ~ ; 4S) |
| 78135-50Y00 | Corner-Rear Fender, Lh | Rear fender & fitting (1992-01-01 ~ ; 4S) |
| 78830-50Y00 | Lid-Gas Filler | Rear fender & fitting (1992-01-01 ~ ; 4S) |
