Search › Model › B12L

B12L

Nissan LAUREL-SPIRIT · 1986 · 3,467 parts · 173 categories

3,467 items

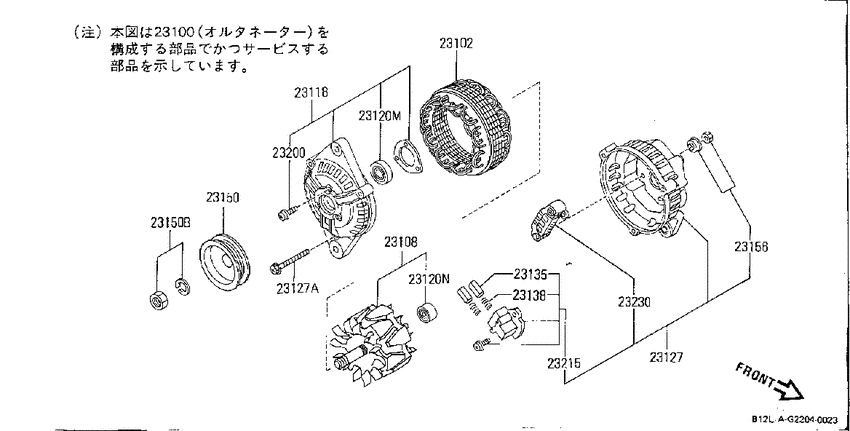

Alternator (1988-07-01 ~ ; ミツビシ; GA15#) 31

#	OEM	Part name
23102	23102-56A00	Stator Assy
23102	23102-77A00	Stator Assy
23102	23102-77A10	Stator Assy
23108	23108-77A00	Rotor Assy
23108	23108-77A01	Rotor Assy
23108	23108-77A10	Rotor Assy
23118	23118-77A00	Cover Assy-Front
23118	23118-77A10	Cover Assy-Front
23120	23120-58S00	Bearing-Ball
23120	23120-58S11	Bearing-Ball
23120	23120-60U00	Bearing-Ball
23120	23120-20P10	Bearing-Ball
23120	23120-58S01	Bearing-Ball
23127	23127-77A00	Cover Assy-Rear
23127	23127-77A10	Cover Assy-Rear
23127	23131-20P10	Bolt-Through
23127	23131-58S00	Bolt-Through
23135	23135-59E10	BRUSH ASSY
23135	23142-58S00	Brush Assy
23138	23138-W1710	Spring-Brush
23138	23138-V5511	Spring-Brush
23150	23150-16V01	Pulley Assy
23150	23150-77A10	Pulley Assy
23150	23153-Q4601	Nut Assy-Pulley
23150	23153-U0110	Nut Assy-Pulley
23156	23156-04P10	Nut-Set
23200	23115-20P10	Screw Set
23200	23200-Q4601	Screw Set
23215	23215-77A10	Regulator Assy-Ic
23230	23124-77A10	Rectifier Assy
23230	23230-77A00	Diode Assy

OEM	Part name	Category
23102-56A00	Stator Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23102-77A00	Stator Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23102-77A10	Stator Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23108-77A00	Rotor Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23108-77A01	Rotor Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23108-77A10	Rotor Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23115-20P10	Screw Set	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23118-77A00	Cover Assy-Front	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23118-77A10	Cover Assy-Front	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23120-20P10	Bearing-Ball	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23120-58S00	Bearing-Ball	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23120-58S01	Bearing-Ball	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23120-58S11	Bearing-Ball	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23120-60U00	Bearing-Ball	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23124-77A10	Rectifier Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23127-77A00	Cover Assy-Rear	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23127-77A10	Cover Assy-Rear	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23131-20P10	Bolt-Through	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23131-58S00	Bolt-Through	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23135-59E10	BRUSH ASSY	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23138-V5511	Spring-Brush	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23138-W1710	Spring-Brush	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23142-58S00	Brush Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23150-16V01	Pulley Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23150-77A10	Pulley Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23153-Q4601	Nut Assy-Pulley	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23153-U0110	Nut Assy-Pulley	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23156-04P10	Nut-Set	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23200-Q4601	Screw Set	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23215-77A10	Regulator Assy-Ic	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)
23230-77A00	Diode Assy	Alternator (1988-07-01 ~ ; ミツビシ; GA15#)

Source: Public OEM parts-catalog data
Variants: 2 / 28
Category: 173
Collected: 2026-07-27
