B12

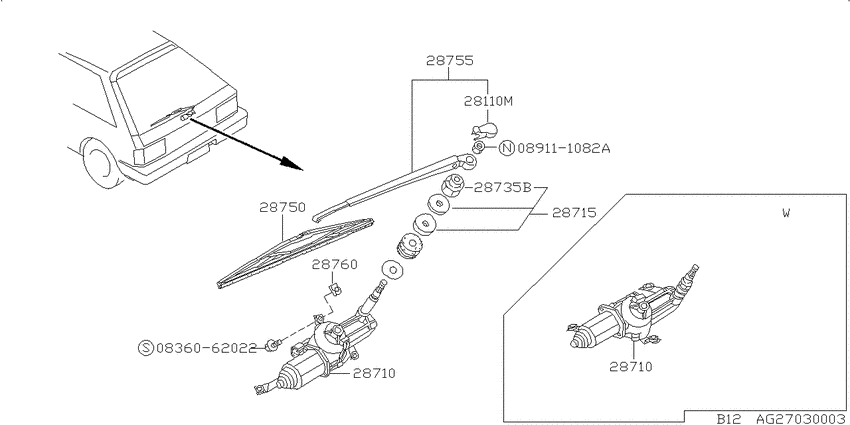

Rear window wiper (1986-02-01 ~ ; K) 10
| # | OEM | Part name |
|---|---|---|
| 28110 | 28782-55A00 | Cover-Rear Wiper Arm |
| 28710 | 28710-57A00 | Motor Assy-Rear Window Wiper |
| 28710 | 28710-57A10 | Motor Assy-Rear Window Wiper |
| 28715 | 28715-57A00 | Washer & Seal Kit-Pivot, B |
| 28715 | 28715-57A10 | Washer & Seal Kit-Pivot, B |
| 28735 | 28718-15F00 | Nut |
| 28750 | 28890-61A00 | Blade Assy-Rear Window Wiper |
| 28755 | 28780-57A00 | Arm Assy-Rear Window Wiper |
| 28760 | 01241-00391 | NUT-ARM SET |
| 836062022 | 08360-62022 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 01241-00391 | NUT-ARM SET | Rear window wiper (1986-02-01 ~ ; K) |
| 08360-62022 | スクリユ-,マシン | Rear window wiper (1986-02-01 ~ ; K) |
| 28710-57A00 | Motor Assy-Rear Window Wiper | Rear window wiper (1986-02-01 ~ ; K) |
| 28710-57A10 | Motor Assy-Rear Window Wiper | Rear window wiper (1986-02-01 ~ ; K) |
| 28715-57A00 | Washer & Seal Kit-Pivot, B | Rear window wiper (1986-02-01 ~ ; K) |
| 28715-57A10 | Washer & Seal Kit-Pivot, B | Rear window wiper (1986-02-01 ~ ; K) |
| 28718-15F00 | Nut | Rear window wiper (1986-02-01 ~ ; K) |
| 28780-57A00 | Arm Assy-Rear Window Wiper | Rear window wiper (1986-02-01 ~ ; K) |
| 28782-55A00 | Cover-Rear Wiper Arm | Rear window wiper (1986-02-01 ~ ; K) |
| 28890-61A00 | Blade Assy-Rear Window Wiper | Rear window wiper (1986-02-01 ~ ; K) |
