B12

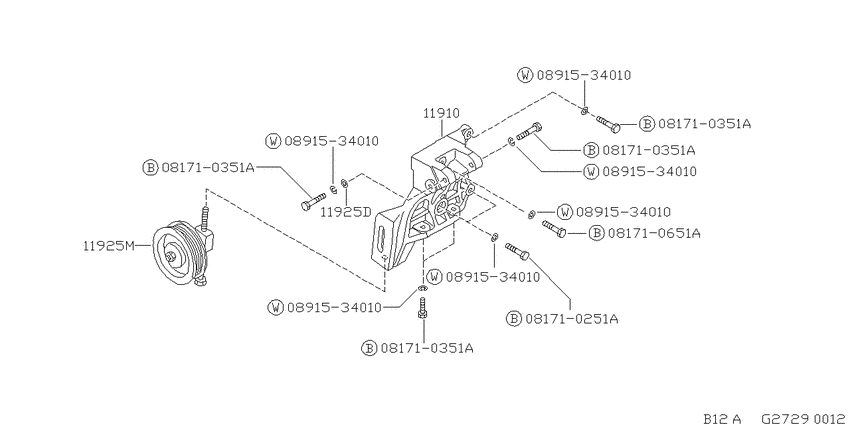

Compressor mounting & fitting (1987-09-01 ~ ; GA15#) 5
| # | OEM | Part name |
|---|---|---|
| 11910 | 11910-77A00 | Bracket-Compressor |
| 11925 | 11058-12G00 | Washer-Plain |
| 11925 | 11925-77A00 | Pulley Assy-Idler, Compressor |
| 81710351 | 08171-0351A | Bolt-hexagon |
| 891534010 | 08915-34010 | WASHER-LOCK |
| OEM | Part name | Category |
|---|---|---|
| 08171-0351A | Bolt-hexagon | Compressor mounting & fitting (1987-09-01 ~ ; GA15#) |
| 08915-34010 | WASHER-LOCK | Compressor mounting & fitting (1987-09-01 ~ ; GA15#) |
| 11058-12G00 | Washer-Plain | Compressor mounting & fitting (1987-09-01 ~ ; GA15#) |
| 11910-77A00 | Bracket-Compressor | Compressor mounting & fitting (1987-09-01 ~ ; GA15#) |
| 11925-77A00 | Pulley Assy-Idler, Compressor | Compressor mounting & fitting (1987-09-01 ~ ; GA15#) |
