B101

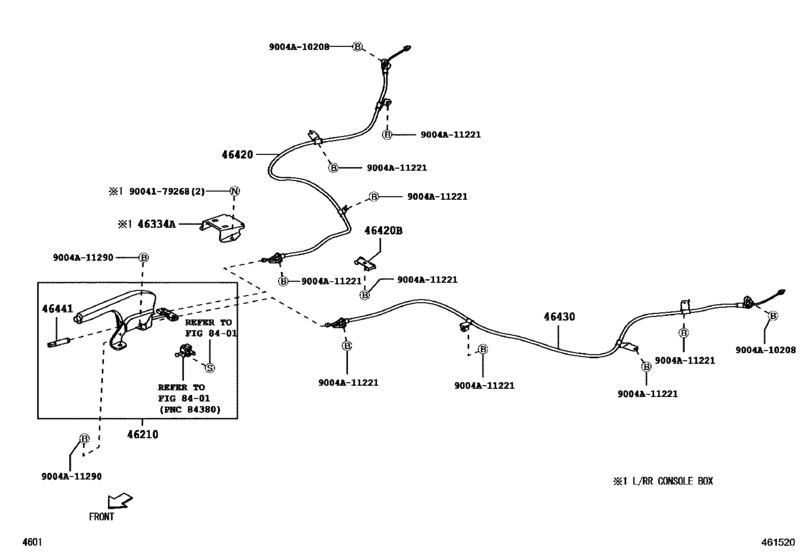

Parking Brake & Cable ([12.2012 - ] (1212- )) 6
| # | OEM | Part name |
|---|---|---|
| 46210 | 46210-BZ110-B0 | Lever Assy, Parking Brake |
| 46420 | 46420-BZ190 | Cable Assy, Parking Brake, No.2 |
| 46420 | 90044-61832 | Clamp, No.2(For Parking Brake Cable) |
| 46430 | 46430-BZ190 | Cable Assy, Parking Brake, No.3 |
| 46441 | 46441-BZ040 | Nut, Wire Adjusting, No.1 |
| 9004179268 | 90041-79268 | Nut, Brake Actuator |
| OEM | Part name | Category |
|---|---|---|
| 46210-BZ110-B0 | Lever Assy, Parking Brake | Parking Brake & Cable ([12.2012 - ] (1212- )) |
| 46420-BZ190 | Cable Assy, Parking Brake, No.2 | Parking Brake & Cable ([12.2012 - ] (1212- )) |
| 46430-BZ190 | Cable Assy, Parking Brake, No.3 | Parking Brake & Cable ([12.2012 - ] (1212- )) |
| 46441-BZ040 | Nut, Wire Adjusting, No.1 | Parking Brake & Cable ([12.2012 - ] (1212- )) |
| 90041-79268 | Nut, Brake Actuator | Parking Brake & Cable ([12.2012 - ] (1212- )) |
| 90044-61832 | Clamp, No.2(For Parking Brake Cable) | Parking Brake & Cable ([12.2012 - ] (1212- )) |
