Search › Model › B101
B101

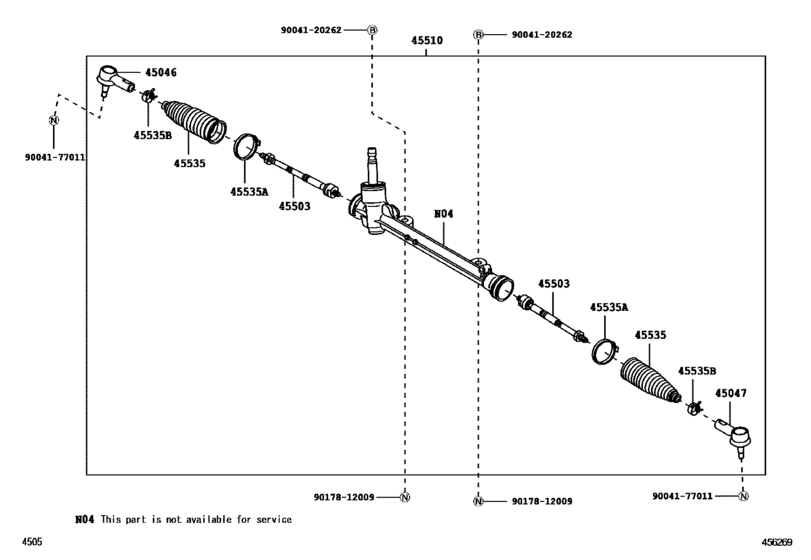

Front Steering Gear & Link ([12.2012 - ] (1212- )) 8
| # | OEM | Part name |
|---|---|---|
| 45046 | 45046-BZ220 | End Sub-Assy, Tie Rod, Rh |
| 45503 | 45503-BZ230 | End Sub-Assy, Steering Rack |
| 45510 | 45510-BZ341 | Gear Assy, Steering |
| 45535 | 45535-BZ090 | Boot, Steering Rack, No.1 |
| 45535 | 15549-BZ010 | Clamp(For Steering Rack Boot) |
| 9004120262 | 90041-20262 | New Genuine Part |
| 9004177011 | 90041-77011 | Nut, Lock |
| 9017812009 | 90178-12009 | Nut(For Suspension Lower Arm Shaft) |
| OEM | Part name | Category |
|---|---|---|
| 15549-BZ010 | Clamp(For Steering Rack Boot) | Front Steering Gear & Link ([12.2012 - ] (1212- )) |
| 45046-BZ220 | End Sub-Assy, Tie Rod, Rh | Front Steering Gear & Link ([12.2012 - ] (1212- )) |
| 45503-BZ230 | End Sub-Assy, Steering Rack | Front Steering Gear & Link ([12.2012 - ] (1212- )) |
| 45510-BZ341 | Gear Assy, Steering | Front Steering Gear & Link ([12.2012 - ] (1212- )) |
| 45535-BZ090 | Boot, Steering Rack, No.1 | Front Steering Gear & Link ([12.2012 - ] (1212- )) |
| 90041-20262 | New Genuine Part | Front Steering Gear & Link ([12.2012 - ] (1212- )) |
| 90041-77011 | Nut, Lock | Front Steering Gear & Link ([12.2012 - ] (1212- )) |
| 90178-12009 | Nut(For Suspension Lower Arm Shaft) | Front Steering Gear & Link ([12.2012 - ] (1212- )) |
