Search › Model › B101

B101

Toyota AGYA-WIGO · 2017 · 1,536 parts · 161 categories

1,536 items

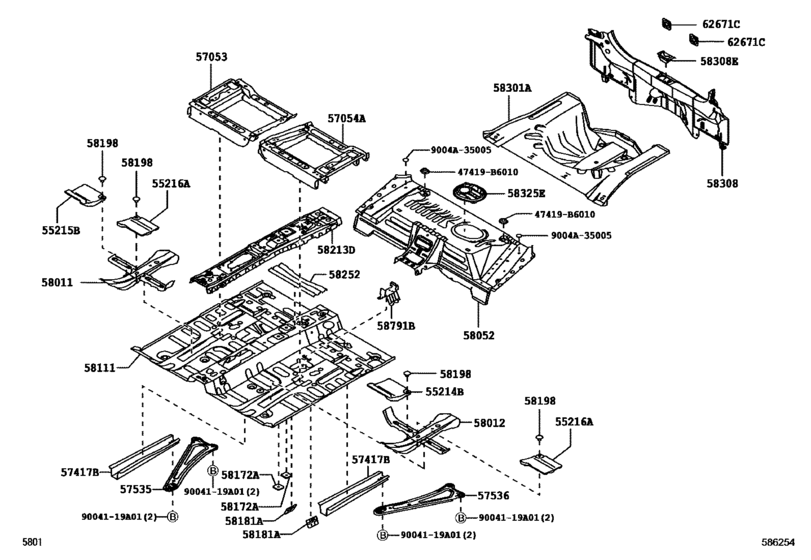

Floor Pan & Lower Back Panel ([04.2017 - ] (1704- )) 25

#	OEM	Part name
47419	47419-B6010	Plug, Hole(for Front Brake)
55214	55214-BZ060	Pad, Dash Panel Insulator, No.2
55215	58571-BZ020	Pad, Dash Panel Insulator, No.3
55216	58572-BZ020	Pad, Dash Panel Insulator, No.3
57053	57053-BZ040	Reinforcement Sub-Assy, Front Floor Cross Member, Rh
57054	57054-BZ070	Reinforcement Sub-Assy, Front Floor Cross Member, Lh
57417	57417-BZ070	Reinforcement, Front Floor Under
57535	57535-BZ040	Brace, Front Floor, Rh
57536	57536-BZ040	Brace, Front Floor, Lh
58011	58025-BZ030	Panel Sub-Assy, Front Floor Side, Rh
58012	58026-BZ030	Panel Sub-Assy, Front Floor Side, Lh
58052	58201-BZ050	Pan Sub-Assy, Center Floor
58111	58111-BZ320	Pan, Front Floor
58172	46521-BZ030	Plate, Parking Brake Mounting
58181	58182-BZ050	Retainer, Seat Rail, Front
58213	58213-BZ160	Reinforcement, Center Floor Panel
58213	58213-BZ150	Reinforcement, Center Floor Panel
58252	58252-BZ010	Brace, Floor Panel, Rear
58301	58301-BZ270	Panel Sub-Assy, Rear Floor
58308	58308-BZ150	Panel Sub-Assy, Body Lower Back, Inner
58308	64716-BZ040-B0	Cover, Hole(For Lower Back)
58325	58325-BZ050	Cover, Rear Floor Service Hole
58791	58791-BZ050	Carrier, Jack
62671	62671-BZ020	Cover, Lower Back Panel
9004119	90041-19A01	Bolt, Instrument Panel

OEM	Part name	Category
46521-BZ030	Plate, Parking Brake Mounting	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
47419-B6010	Plug, Hole(for Front Brake)	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
55214-BZ060	Pad, Dash Panel Insulator, No.2	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
57053-BZ040	Reinforcement Sub-Assy, Front Floor Cross Member, Rh	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
57054-BZ070	Reinforcement Sub-Assy, Front Floor Cross Member, Lh	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
57417-BZ070	Reinforcement, Front Floor Under	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
57535-BZ040	Brace, Front Floor, Rh	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
57536-BZ040	Brace, Front Floor, Lh	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58025-BZ030	Panel Sub-Assy, Front Floor Side, Rh	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58026-BZ030	Panel Sub-Assy, Front Floor Side, Lh	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58111-BZ320	Pan, Front Floor	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58182-BZ050	Retainer, Seat Rail, Front	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58201-BZ050	Pan Sub-Assy, Center Floor	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58213-BZ150	Reinforcement, Center Floor Panel	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58213-BZ160	Reinforcement, Center Floor Panel	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58252-BZ010	Brace, Floor Panel, Rear	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58301-BZ270	Panel Sub-Assy, Rear Floor	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58308-BZ150	Panel Sub-Assy, Body Lower Back, Inner	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58325-BZ050	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58571-BZ020	Pad, Dash Panel Insulator, No.3	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58572-BZ020	Pad, Dash Panel Insulator, No.3	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
58791-BZ050	Carrier, Jack	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
62671-BZ020	Cover, Lower Back Panel	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
64716-BZ040-B0	Cover, Hole(For Lower Back)	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
90041-19A01	Bolt, Instrument Panel	Floor Pan & Lower Back Panel ([04.2017 - ] (1704- ))
