Search › Model › B101
B101

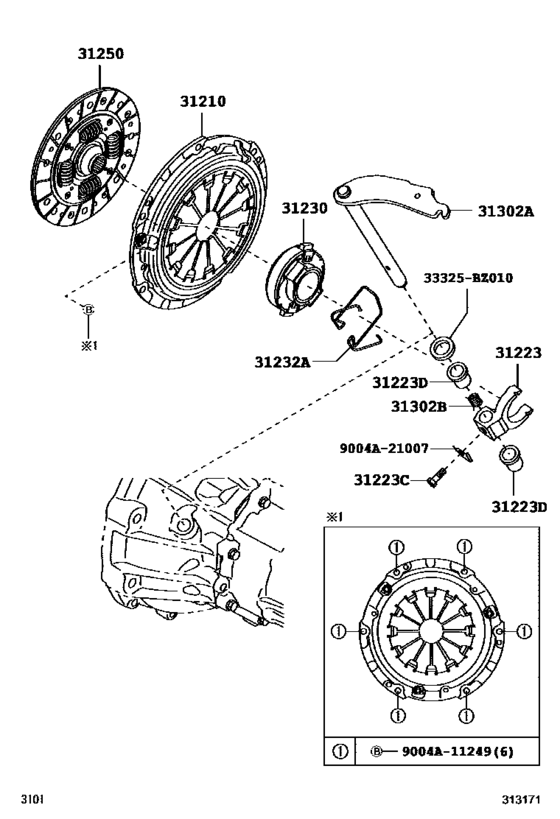

Clutch & Release Fork ([04.2017 - ] (1704- )MTM) 8
| # | OEM | Part name |
|---|---|---|
| 9004 | 91611-B0816 | Bolt |
| 31210 | 31210-BZ180 | Cover Assy, Clutch |
| 31223 | 31223-BZ041 | Yoke, Clutch Release Lever |
| 31230 | 31230-BZ040 | Bearing Assy, Clutch Release |
| 31232 | 31232-BZ070 | Clip, Release Bearing Hub |
| 31250 | 31250-BZ270 | Disc Assy, Clutch |
| 31302 | 31302-BZ050 | Lever Sub-Assy, Clutch Release Fork |
| 33325 | 33325-BZ010 | Dfflector, Dust (for Mtm Output Shaft Companion Flange) |
| OEM | Part name | Category |
|---|---|---|
| 31210-BZ180 | Cover Assy, Clutch | Clutch & Release Fork ([04.2017 - ] (1704- )MTM) |
| 31223-BZ041 | Yoke, Clutch Release Lever | Clutch & Release Fork ([04.2017 - ] (1704- )MTM) |
| 31230-BZ040 | Bearing Assy, Clutch Release | Clutch & Release Fork ([04.2017 - ] (1704- )MTM) |
| 31232-BZ070 | Clip, Release Bearing Hub | Clutch & Release Fork ([04.2017 - ] (1704- )MTM) |
| 31250-BZ270 | Disc Assy, Clutch | Clutch & Release Fork ([04.2017 - ] (1704- )MTM) |
| 31302-BZ050 | Lever Sub-Assy, Clutch Release Fork | Clutch & Release Fork ([04.2017 - ] (1704- )MTM) |
| 33325-BZ010 | Dfflector, Dust (for Mtm Output Shaft Companion Flange) | Clutch & Release Fork ([04.2017 - ] (1704- )MTM) |
| 91611-B0816 | Bolt | Clutch & Release Fork ([04.2017 - ] (1704- )MTM) |
