B100

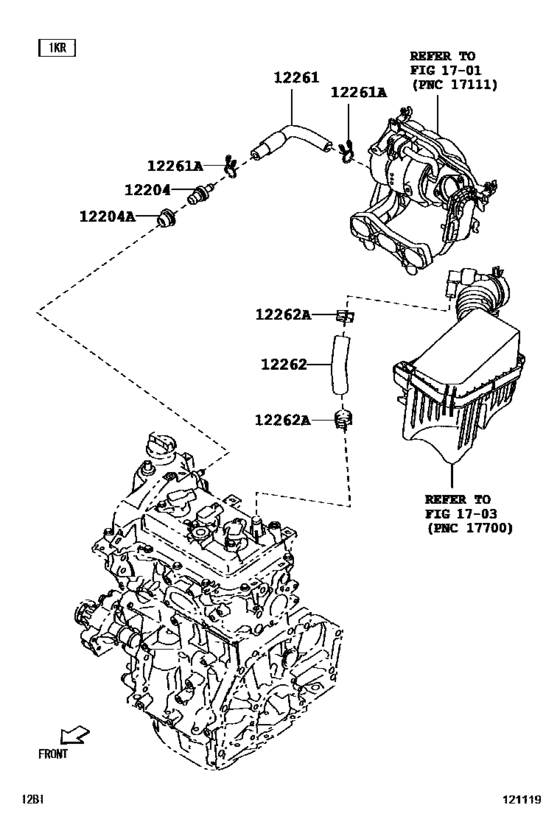

Ventilation Hose ([04.2017 - ] (1704- )1KRVE) 6
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-BZ020 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-BZ170 | Hose, Ventilation |
| 12261 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-BZ100 | Hose, Ventilation, No.2 |
| 12262 | 90466-T0020 | Clip(For Water By-Pass Hose No.1) |
| OEM | Part name | Category |
|---|---|---|
| 12204-BZ020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([04.2017 - ] (1704- )1KRVE) |
| 12261-BZ170 | Hose, Ventilation | Ventilation Hose ([04.2017 - ] (1704- )1KRVE) |
| 12262-BZ100 | Hose, Ventilation, No.2 | Ventilation Hose ([04.2017 - ] (1704- )1KRVE) |
| 90466-T0020 | Clip(For Water By-Pass Hose No.1) | Ventilation Hose ([04.2017 - ] (1704- )1KRVE) |
| 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([04.2017 - ] (1704- )1KRVE) |
| 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([04.2017 - ] (1704- )1KRVE) |
